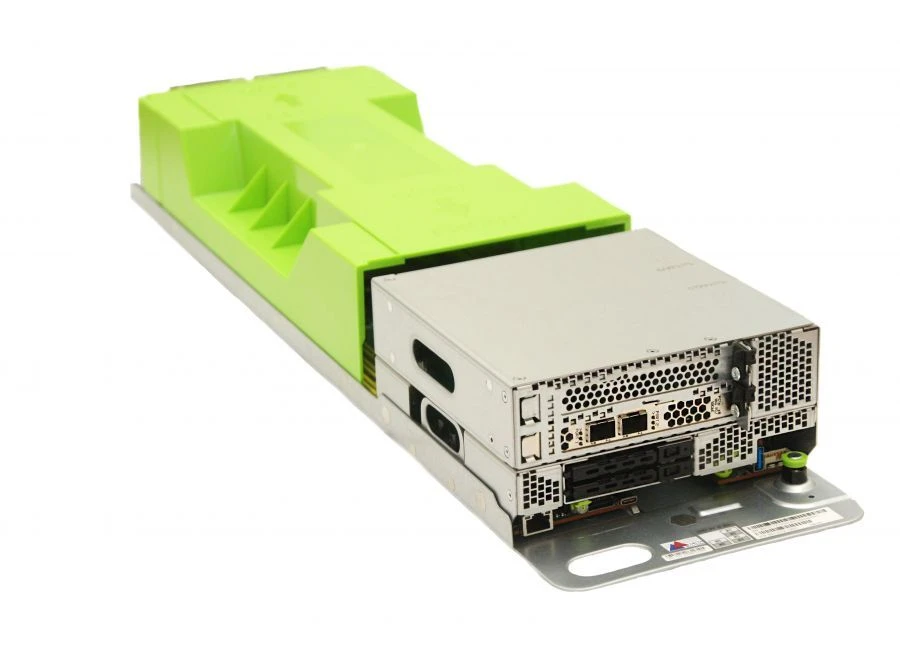

Delta Tioga Pass Server I22W2S0D02 for Energy-Efficient Data Centers

Digital Computing Systems

Manufacturer: DELTA SOLUTIONS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The Delta Tioga Pass server is designed in accordance with open standards and architecture Open Compute Project (OCP), is the basis of energy-efficient and cost-effective data centres, carries a wide range of workloads, allowing users to build compute clusters, create distributed storage and hyperconverged infrastructure. Delta Tioga Pass server is easy to maintain, has high energy efficiency in an ultra-compact size. The Delta Tioga Pass server is remotely managed and monitored via the built-in "Delta BMC" software. Users can hot-swap both the server itself and the high-speed SSDs included in the many configurations of the Delta Tioga Pass server. Combining the advantages of OCP architecture and server performance allows not only to reduce the cost of ownership, but also to provide customers with better and more affordable services, getting se...

Specifications

Type of product according to PP RF 616

Computational electronic digital machines, supplied as systems for automatic data processing

Processor connector

Two socket p LGA 3647 (socket p)

Processor family

intel® xeon® scalable processor / 2nd intel® xeon® scalable processor

Interface connection of processors

intel® ultra path interconnect (upi) with operating speeds up to 10.4gt/s.

Processor chipset

intel® c621

Number of RAM slots

B1/B8 2100/900 MHz pcs

Type of RAM

ddr4

RAM bus frequency

2400/2666/2933 MHz

Type of RAM

rdimm/lrdimm

Maximum RAM capacity

Up to 3072 GB (using 12 256 GB RAM modules)

Storage subsystem (on the motherboard)

Slot for 1 M.2 PCIe x4 or SATA 2280/22110 size M.2 SSD

Storage subsystem (on motherboard) - optional

Slots for 2 M.2 NVMe x4 SSDs

Storage subsystem (in the disk add-on)

slots for 2 2;5" 7mm sata hot-swappable 2.5" SSDs

Expansion card connectors

PCIe x 16 FHHL - 2 pcs.

Expansion card connectors (OCP)

mezzanine ocp 2.0 card (a+b)

Platform management interface

ipmi via rj45 port (front panel)

Video interface

Mini VGA (front panel)

USB connectors

usb 2.0/3.0 - 1 pc. usb type c - 1 pc. (on the front panel)

Testing interface

14-pin server debug card connector (front panel)

Number of cooling fans

2 pcs

Dimensions (W x L x H)

2ou; 174 mm x 880 mm x 89 mm

Weight (net weight)

6.9...7.3 kg

Power supply

DC 12;2V ± 0;4V from the server rack current bus

Rear panel I/O interfaces

PCIe x8 via AirMax - 2 pcs (optional)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
