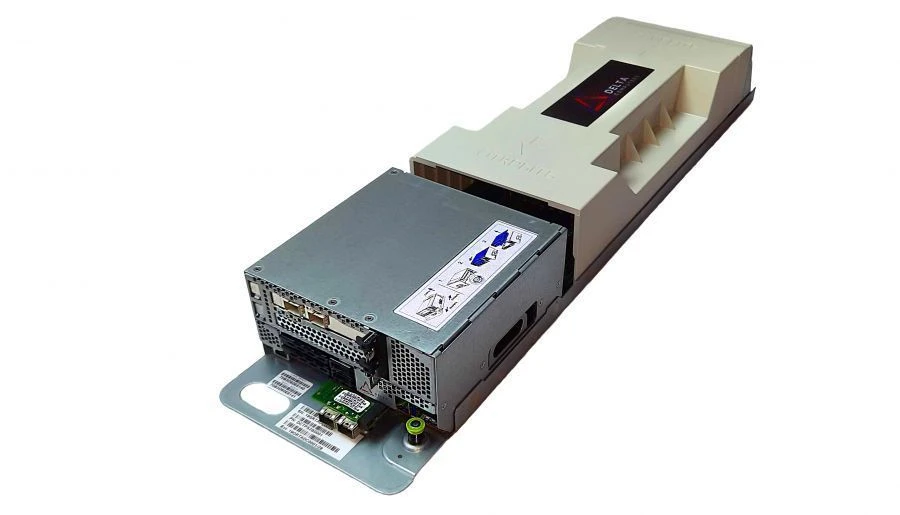

Delta Tioga Pass I22A6U0D00 Server for Efficient Network Computing

Data Processing Systems

Manufacturer: DELTA COMPUTERS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The product is a functional computing network device that provides services to workstations, personal computers or other functional devices. The server configuration is a high-performance computing device with data storage and processing function. The product design supports hot-swap function. This function allows you to replace a damaged node, without the need for a complete power failure of the server, which minimises disruption to the system.

Specifications

Processor connector

Two socket p LGA 3647 (socket p)

Processor family

Intel® Xeon® Scalable processor / 2nd intel® Xeon® Scalable processor

Interface connection of processors

intel® ultra path interconnect (upi) with operating speeds up to 10.4gt/s.

Processor chipset

Intel® C621

Type of RAM

DDR4

RAM bus frequency

2400/2666/2933 MHz

Type of RAM

RDIMM/LRDIMM

Maximum RAM capacity

Up to 4096 GB (using 16 256 GB RAM modules)

Storage subsystem (on the motherboard)

Slot for 1 M.2 PCIe x4 or SATA 2280/22110 size solid state drive

Storage subsystem (on motherboard) - optional

Slots for 2 M.2 NMVe x4 SSDs

Storage subsystem (in the disk add-on)

Slots for up to 6 2.5" U.2 7-15mm NVMe hot-swap SSDs

Expansion card connectors (OCP)

Mezzanine OCP 2.0 card (a+b)

Platform management interface

IPMI via RJ-45 port (front panel)

Video interface

Mini VGA (front panel)

USB connectors

USB 2.0/3.0 - 1 pc USB Type C - 1 pc

Testing interface

14-pin server debug card connector (front panel)

Dimensions (W x L x H)

2OU, 174 mm x 880 mm x 89 mm

Weight

6.9...7.3 kg

Power supply

DC 12.2 V ± 0.4 V from the current busbar

Rear panel I/O interfaces

PCIe x8 via AirMax - 2 pcs (optional)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
