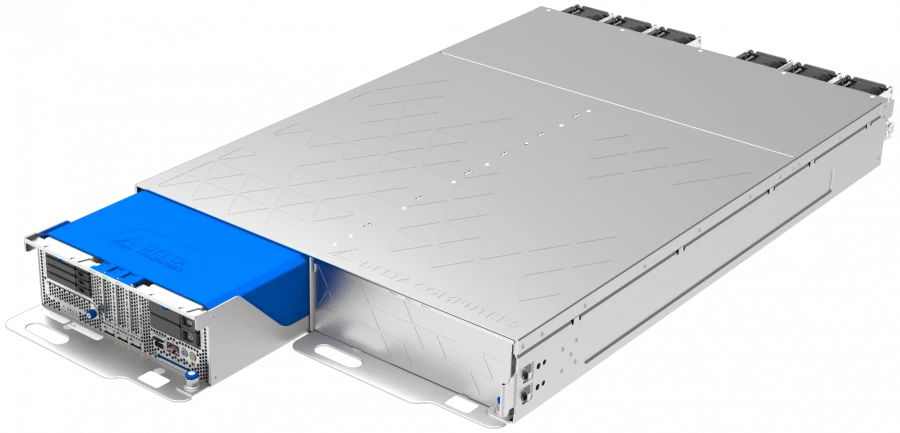

Delta Serval L6RL.R100.F08 Server for High-Performance Data Processing and Storage
Manufacturer:
DELTA COMPUTERS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Delta Serval server is a functional device of the computing network, which performs computing tasks for processing large amounts of data, as well as storage tasks and complex hyperconverged tasks.
Specifications
Total server weight
27.5 kg
Dimensions (W x L x H)
536 mm x 926 mm x 95 mm
BMC controller
ASPEED AST2600
Remote control
SNMP, SMTP, IPMI 2.0, Redfish API, KVM, "Delta BMC" microcode
Weight
Maximum 10 kg (specified for one VM)
Form factor
2OU, OCP Rack
Power supply
From centralized busbar, OCP
Number of cooling fans
6 pcs. with hot-swap function and indication
Number of processor sockets
2 connectors (specified for one VM)
Processor generation
Intel Xeon Scalable 5th Generation (Emerald Rapids) or Intel Xeon Scalable 4th Generation (Sapphire Rapids)
Processor connection interface
Intel® Ultra Path Interconnect (UPI) - 4 lines
Processor chipset
Intel® C741
Maximum processor heat dissipation (TDP)
350 watts
Maximum RAM capacity
8 TB RAM (specified for one VM)
Number of RAM slots
32 (specified for one VM)
Type of RAM
DDR5, 8 channels per processor, RDIMM/LRDIMM
Connector for OCP 3.0 expansion card
PCIe 5.0 x 16 (specified per VM)
Platform management interface
Ethernet 10/100/1000 Mbps via RJ45 port (specified for one VM)
I/O ports
1 x USB 3.0, 1 x Mini-VGA, 1 x PWR button, 1 x UID button, Reset button (specified for one VM)
Expansion slots, HHHL
2 x PCIe 5.0 x 16 or 1 x PCIe 5.0 x 16, 2 x PCIe 5.0 x 8 (specified for a single VM)
Drive slots, 7 mm
4 x SSD 2.5" (U.2 NVMe) 7 mm hot-swappable (specified for one VM)
Drive slots, 15 mm
2 x SSD 2.5" (U.2 NVMe) 7 mm hot-swappable (specified for one VM)
RAID support
1 x Intel VROC connector
USB connectors (if service board is available)
2 x USB 3.0
Interface for debugging (if service board is available)
1 x USB Type-C
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
