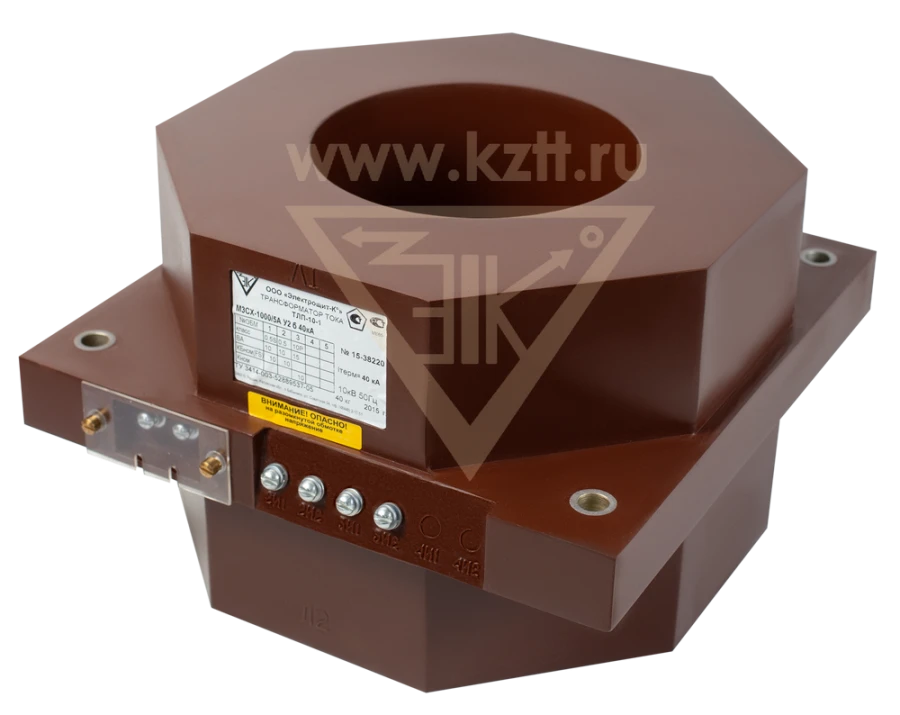

Current Transformer TLP-10-1 M3 for Internal and External Power Distribution

Low-Power Electrical Transformers

Manufacturer: ELECTROSHIT-K° LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

TLP-10-1 current transformer is designed for installation in complete switchgear (switchgear) indoor and outdoor installation, as well as prefabricated single-sided service chambers (CSR) and is a component product.Current transformer provides signal transmission of measurement information to measuring devices and protection and control devices, to isolate secondary connection circuits from high voltage in electrical installations of alternating current for voltage class up to 10 kV.Climatic design U, UHL or T, category

Specifications

Overall dimensions, (DxWxH), not more than

330x320x210

Rated secondary current, A

1; 5

Rated primary current, A

500-5000

Rated voltage, kV

Highest operating voltage, kV

B1/B8 2100/900 MHz

Number of secondary windings

up to 5

Accuracy classes of secondary windings for measuring and metering according to GOST 7746

0,2S; 0,2; 0,5S; 0,5; 1; 3

Accuracy classes of secondary windings for protection according to GOST 7746

5P; 10P

Accuracy classes of secondary windings for protection according to GOST R IEC 61869-2

5RR; 10RR; TPY; TPZ; PX; TPX; PX; PXR
