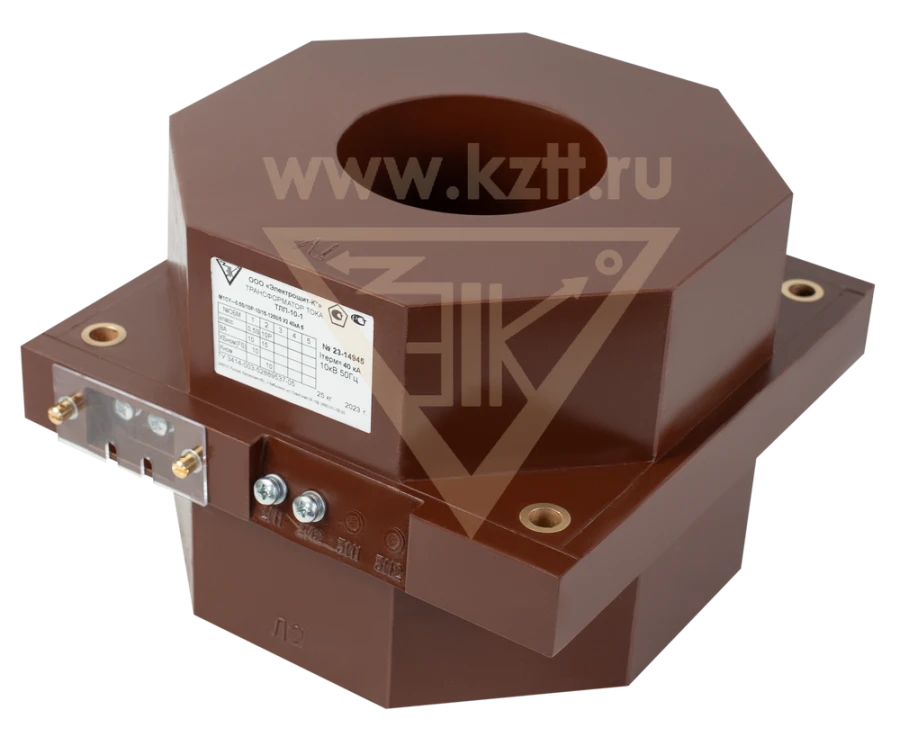

Current Transformer TLP-10-1 M2 for Accurate Power Measurement and Distribution
Manufacturer:
ELECTROSHIT-K° LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
TLP-10-1 current transformer is designed for installation in complete switchgear (switchgear) indoor and outdoor installation, as well as prefabricated single-sided service chambers (CSR) and is a component product.Current transformer provides signal transmission of measurement information to measuring devices and protection and control devices, to isolate secondary connection circuits from high voltage in electrical installations of alternating current for voltage class up to 10 kV.Climatic design U, UHL or T, category
Specifications
Accuracy classes of secondary windings for protection according to GOST R IEC 61869-2
5RR; 10RR; TPY; TPZ; PX; TPX; PX; PXR
Accuracy classes of secondary windings for protection according to GOST 7746
5P; 10P
Accuracy classes of secondary windings for measuring and metering according to GOST 7746
0,2S; 0,2; 0,5S; 0,5; 1; 3
Number of secondary windings
up to 5
Highest operating voltage, kV
B1/B8 2100/900 MHz
Rated voltage, kV
10
Rated primary current, A
500-3000
Rated secondary current, A
1; 5
Overall dimensions, (DxWxH), not more than
290x280x224
