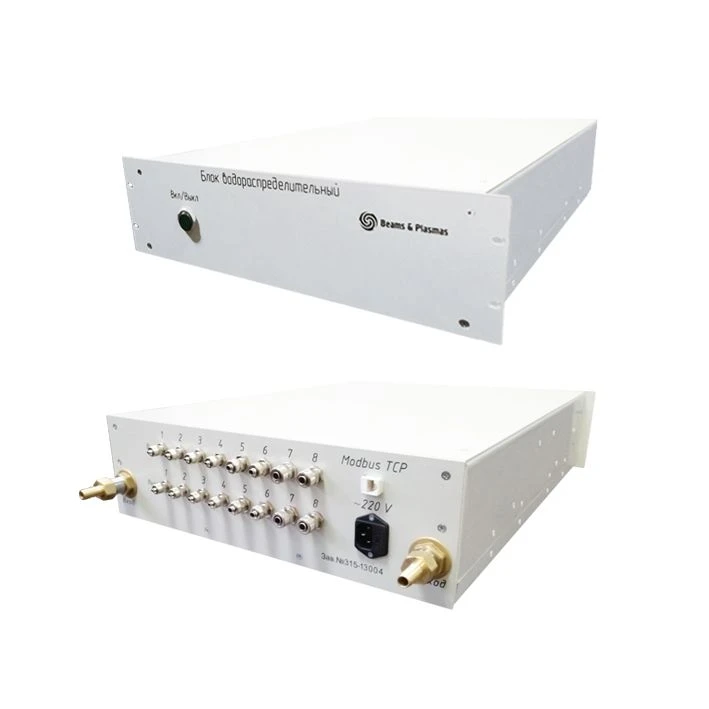

Cooling Fluid Distribution Block for Vacuum Systems - Reliable Control and Safety

Electrical Interface Devices

Manufacturer: LVT+ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The unit is designed for distribution of coolant and control of its parameters in vacuum units.

The unit is equipped with: <ul> <li>- emergency interlocking system</li> <li>ModBUS-TCP protocol control (Ethernet 10Base-T)</li> <li>has RJ-45 connector for operation in TCP/IP data transmission network</li> </ul> The unit provides continuous control of each of the eight channels: instantaneous coolant flow rate and temperature. Distilled water according to GOST 6709-72 is used as a coolant. Pressure and temperature measurements are performed on both inputs and outputs. The 3U (132.5 mm) high front panel ensures mounting of the unit in a typical 19-rack with a depth of at least 700 mm.

*Operational Manual is available on request: LCMK.315.00.00.00.00.000 RE WATER DISTRIBUTION UNIT 315 The unit can be delivered as part of the installation without packaging. On request, standard modernisation of the device by the manufacturer is possible.

Specifications

Dustproof

Yes - The unit housing is made of metal and has no exposed live parts.

Warranty period

1 year

Power supply voltage

230 ±10% V

Maximum power consumption

110 W

Operating frequency

50±0,2

Working fluid (recommended)

Distilled water, 20% solution of ethyl alcohol in distilled water according to GOST 6709-72 Temperature range of working liquid, °C 5-90

Maximum measured working fluid pressure, max.

0,6 MPa

Maximum working fluid pressure

1 MPa

Measuring range of working fluid flow rate (per channel), l/min

0,5-4

Connection

2P+RE

Number of working channels (feed/drain)

8/8 pcs

Data transfer protocol

ModBUS-TCP (Ethernet 10Base-T)

Overall dimensions, (length x width x height)

681x466x133 mm

Weight, not more

25 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
