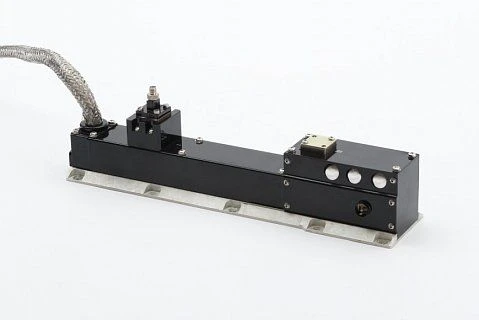

Continuous Wave Running Wave Lamp UV-535A for Space Equipment

Microwave Tubes & Amplifiers

Manufacturer: ALMAZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

UV-535B travelling wave lamp

Description

Continuous running wave lamp, designed to work as an output amplifier of microwave signals in on-board space equipment inside or outside the germocontainer. The design is metal-ceramic, with magnetic periodic focusing system, with flexible electrode leads. Microwave energy input - coaxial, microwave energy output - rectangular waveguide type WR34. The cathode is tungsten, metal-porous, indirectly pumped. Cooling - conductive.

Specifications

Filament current

5 A

Weight

1.3 kg

Operating frequency range

Cathode current

11 A

Anode voltage

7 kV

Continuous power output

60 W

Input power

2-20

Saturation mode gain at nominal supply voltages

SBVVBG

Ready time

180

EFFICIENCY

55 %
