Continuous Wave Running Wave Lamp UV-393 for Amplifying Microwave Signals

Microwave Tubes & Amplifiers

Manufacturer: PLUTON OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

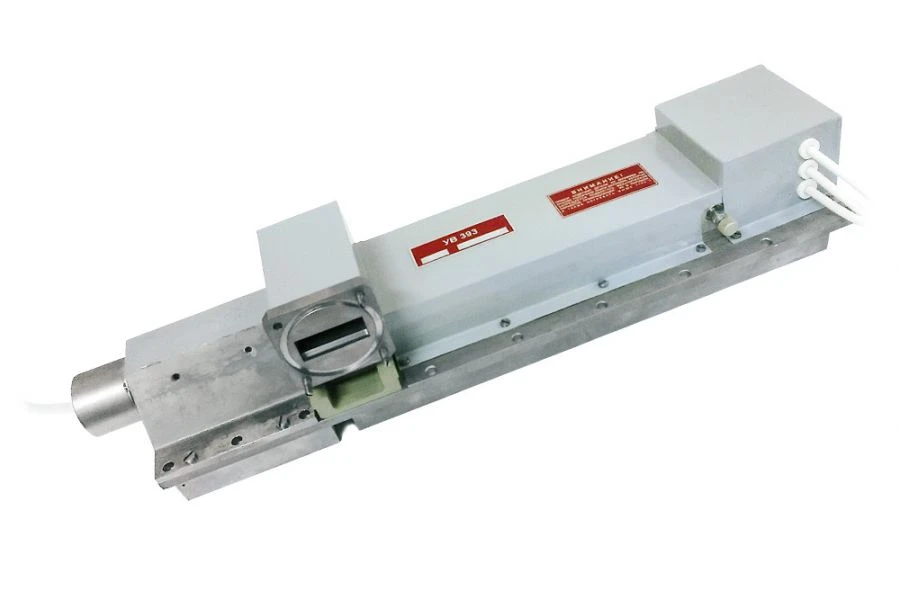

Running wave lamps (RWL) UV-393 of continuous operation with air forced cooling, designed as an amplifier of microwave signal in the frequency range of 5,7-7,3 GHz, for operation in the equipment of national economic purpose.

Specifications

Filament voltage

12...13.2 V

Filament current

1.5 A

Weight

7 kg

Dimensions, DxWxH

450x128x114 mm

Gamma percent MTBF

2000

Deceleration system current

0.01 A

Collector current

0.42 A

Decelerating system voltage

8...9 kV

Anode voltage

5.3...6 kV

Gain factor

Output power

400 W

Operating frequency range

5.7...7.3

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
