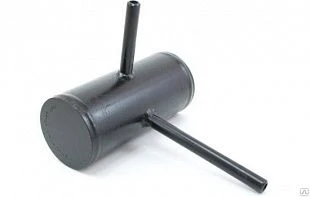

Condensate Equalization Vessel (SK) for Consistent Pressure Measurement

The condensate equalisation vessel (EC) is designed to maintain constant and equal levels of condensate in connecting lines transmitting differential pressure from the diaphragm to pressure difference sensors when measuring steam flow. SC is a hermetically sealed vessel consisting of a cylindrical shell with welded bottoms. In the cylindrical shell or in the bottom is welded two spigots: one for connection to the line of pressure extraction of the narrowing device (diaphragm, nozzle), the second for connection to the line difmanometer.
