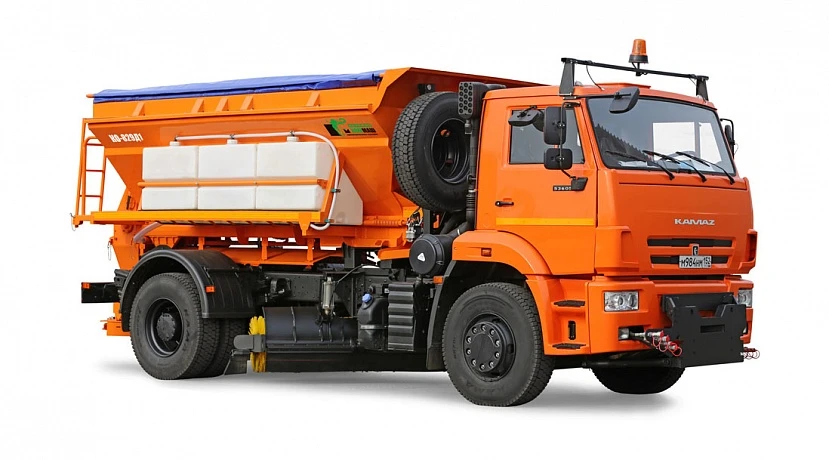

Combined Road Machine for Year-Round Use KO-829D1 on KAMAZ-53605-A5 Chassis

Available for Import

Combined Road Machine KO-829D1 for Efficient Year-Round Road Maintenance

Municipal Road Vehicles

Manufacturer: KOMMAШ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Combined road machine (CRM) KO-829D1 is used for all-season maintenance of urban and trunk roads. In winter the machine is used with sand-spreading equipment for sprinkling inert materials or anti-icing agents on the surface of pavements and roads, as well as for cleaning the roadbed from freshly fallen snow plough-brush equipment. In summer the machine is used with water-washing equipment for washing and watering of road surfaces, stops, washing of the shoulder strip and watering of green areas. The combined road machine is a chassis on which the basic superstructure is installed: (water-washing tanker or sand spreading equipment). For efficient performance of functions the combined machine can be equipped with additional options: (front swivelling mouldboard (hydraulic), city mouldboard, high-speed mouldboard, inter-base (middle) brush, barrier washing brush, high-pressure rail;.....

Specifications

Type of product according to PP RF 616

Combined road machines

Engine type

diesel

Base chassis type

?????-53605-0003950-a5, ?????-53605-0004950-a5

Tank volume

Sprinkle density for sand

up to 500 g/m2

Machine type

Combined road machine

Capacity of humidification tanks

1.56

Weight of the special equipment of the irrigation washing machine

2300 kg

Weight of special equipment for spreading liquid reagents

2150 kg

Width of the working area of the waterwashing equipment

2.5...20 m

Width of the working area of the high pressure rail equipment

2.8...3.5 m

Weight of special equipment of the high pressure rail

300 kg

Working area width of liquid reagent distribution equipment

3.5...9 m

Working area width of brush cleaning equipment for washing barrier fences

B38/B40/B41 m

Operating water pressure for low pressure washer operation

0.4 MPa

Weight of special spreading equipment

3100 kg

Weight of special equipment of the city blade

420 kg

Speed blade special equipment weight

840 kg

Weight of grader special equipment

700 kg

Weight of special brush (medium) equipment

250 kg

Weight of front (rear) brush special equipment

500 kg

Side blade special equipment weight

250 kg

Width of the working area of the spreading equipment

2...12 m

Working width of the working area of the urban blade equipment

2.5...3 m

Width of working area of the high-speed blade equipment

3 m

Working area width of the inter-base brush equipment

2.5 m

Sprinkle density for spreading liquid reagents

Up to 120 g/m2

Technically permissible maximum weight of the machine

20500 kg

Attachments (optional extras)

replaceable

Type

Vehicles for public utilities and road maintenance

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
