Combined Osteosynthesis Guide for Small Cross-Section Bones - Article 306.025

Instrument for stable-functional osteosynthesis of small cross-section bones. It is used to form a hole for insertion of a cortical screw and a lockable self-tapping screw. It is made of corrosion-resistant stainless steel.

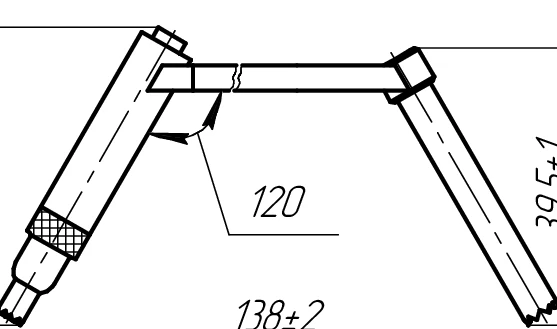

Total length - 138.0 mm. Number of sleeves - 2 pcs with lengths of 39.5 and 46.5 mm. The serrations on the distal end ensure reliable placement on hard tissue surfaces (the product does not screw into the bone).

The size of the sleeves corresponds to the size of the drill bit. The diameter of the drill bit is 2.5 and 3.5 mm. Graduated marks along the entire length.

At the proximal end there is a handle for holding and manipulating the guide or it can be held by another device (e.g. fixed in an orthopaedic holder). Drill diameter marking on the sleeve.

Individual packaging. Reusable.
