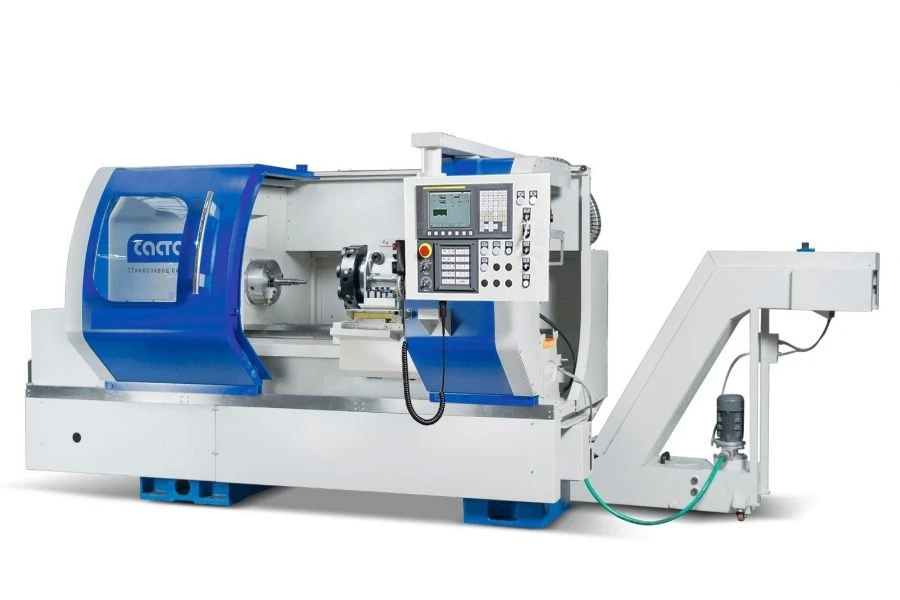

CNC Lathe Machine with Control System SA800C10F2 for Precision Engineering

CNC Metal Lathes

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Turning centre lathe model CA700C10F2 Turning centre lathe of CA700C20F2 model Turning centre lathe of CA800C30F2 model Turning centre lathe of CA800C20F2 model Turning centre lathe of CA800C40F2 model

Turning centre lathe model CA700C40F2 Turning centre lathe model CA700C30F2

Description

- Operative Control System (OCS) lathes are the new generation of lathes that have replaced the classic universal lathes with digital indication device (DID).
OSU machines offer machining capabilities comparable to those of numerically controlled machines (CNC)
The latest Fanuc based operational control system provides the functionality of a CNC system while maintaining operator ease of operation and manual override capability.
Rigid cast iron solid bed, artificially aged to relieve internal stresses, ensures long term stability of the machine's geometric accuracy.
Wide prismatic and flat slideways, hardened to a depth of 1.5-2 mm to a hardness of 52HRC and ground, ensure high durability.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Width

2080 mm

Machine weight, not more

4800 kg

Length

3393 mm

Height

1906 mm

Chuck type

Mechanical (hydraulic* optional)

Diameter of the spindle bore for the bar

140 mm

Tool size (shank)

32x32 (VDI40* optional)

Number of tool slots

4 (8* optional)

Moving the tailstock quill

240 mm

Diameter of tailstock quill

120 mm

Tailstock quill taper

Morse 6

X-axis travel (transverse movement of the slide)

425 mm

Maximum spindle speed

1600

Z-axis travel speed (longitudinal movement of the slide)

Width without remote control/ with remote control

2960 mm

Largest diameter of the workpiece to be mounted above the bed

800 mm

Largest diameter of the workpiece to be machined above the slide

540 mm

Z-axis travel (longitudinal movement of the slide)

900 mm

X-axis travel speed (lateral movement of the slide)

5 m/min

Maximum torque

2187.5 Nm;1750

Speed control

Dual-range gearbox

Main engine power

22/26 kW

Spindle end

?11

Chuck diameter

400 (500, 630* optional)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
