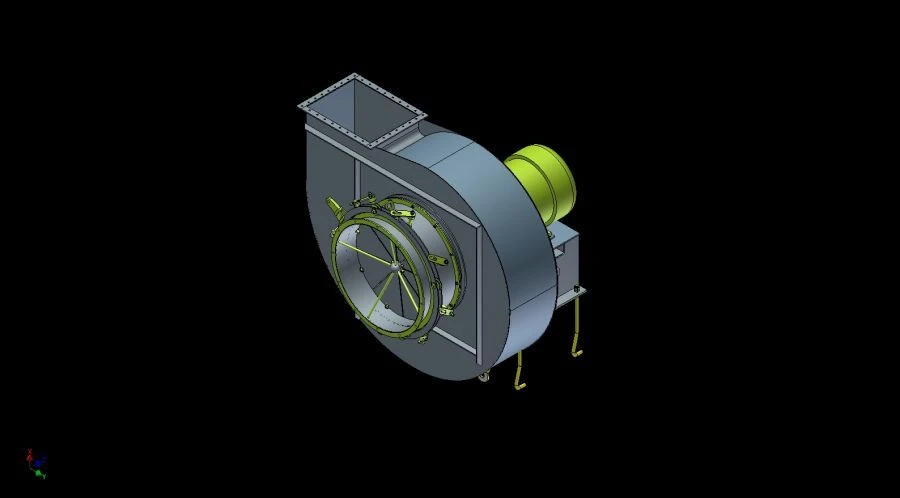

Centrifugal Smoke Extractor Without Base for Efficient Boiler Fume Removal

Smoke pump centrifugal right and left rotation, designed for suction of flue gases from furnaces of pulverised coal steam and hot water stationary boilers at dry and wet ash collecting and dustiness of gas flow not more than 2 g/nm3. The smoke pump can also be used in other installations of various industries with similar performance indicators. Distinctive feature of this smoke evacuator is its execution without running gear.

The working wheel is mounted on the electric motor shaft. Smoke pump structurally consists of a guide apparatus, necessary for regulating the parameters of operation, spiral casing, impeller, which serves to transfer energy to the flow from the drive motor and running gear. In the process of medium movement in the impeller, the flow is dynamically influenced by the blades and is involved in rotational motion.

This results in a change in the momentum of the transported medium and increases its sweat...
