Carbon D 5000 Disc Harrow Available for Import

Carbon D 5000 Disc Harrow for Efficient Soil Tillage

Disc Harrows
Manufacturer: BLOCK OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Carbon D 6000 disc harrow

Description

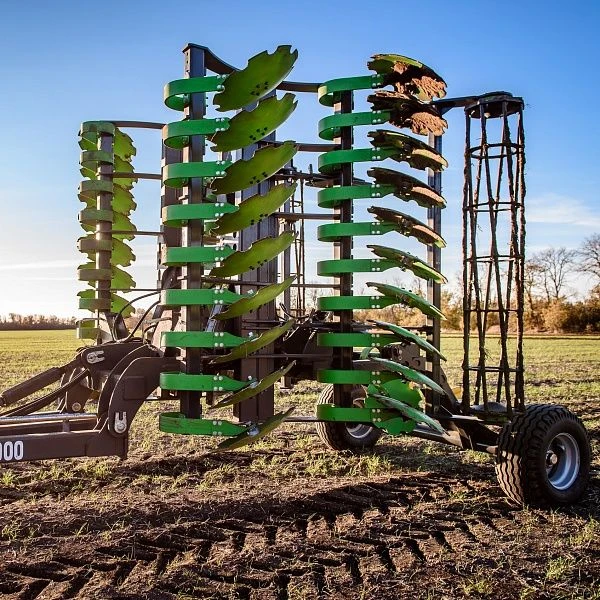

The Carbon D 5000 disc harrow is a semi-trailed machine with two rows of spherical discs mounted on individual spring struts. It is designed to be equipped with a track consisting of rollers. The harrow is equipped with deflectors on the left and right sides of the harrow to prevent the formation of soil ridges between adjacent passes of the machine. The harrow is designed for use in agricultural production in various soil and climatic zones for cultivation of soil not clogged with stones to a depth of up to 15 cm. Working width is 5 m, consists of the following main parts: head frame with linkage axle and parking support, central frame to which left and right wings are hinged and two working planes, left and right.

Specifications

Type of product according to PP RF 616
Disc harrows
Distance between rows
1200 mm
Weight
3800 kg
Number of implement rows
2 pcs
Material of working elements
50hgfa steel, 30MnB5 steel
Material of frame structures
09g2s steel, 40x steel
Harrow type
Carbon disk harrows
Working width
5 m
Height
1650 mm
Width
5000 mm
Length
6200 mm
Operating speed
15
Capacity per hour
7.5
Number of working orans
38 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
