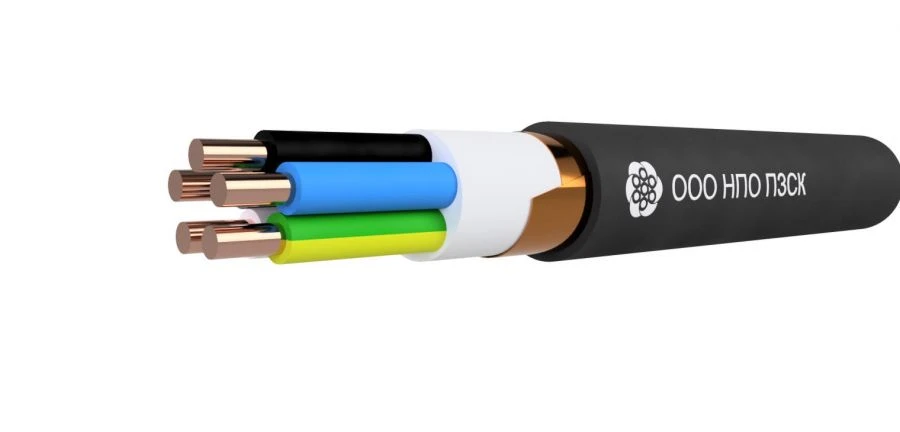

Cable PvVVGEng(A)-LS
Manufacturer:
LLC "NPO "PZSK"
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Cable PvVVGEng(A)-LS power cable with copper conductors, with cross-linked polyethylene insulation, inner and outer sheath of polyvinylchloride plasticate of reduced fire hazard, with reduced smoke and gas emission, shielded, designed for the transmission and distribution of electrical energy in electrical installations for rated alternating voltage of 0,6 and 1 kV nominal frequency up to 50 Hz.
The cable is manufactured for general industrial application and is intended for stationary laying in the air, in enclosed spaces, in the ground, in cable collectors for single laying, including in explosive zones when supplied to the domestic market and for export, including countries with tropical climates.
The cable is manufactured for general industrial application and is intended for stationary laying in the air, in enclosed spaces, in the ground, in cable collectors for single laying, including in explosive zones when supplied to the domestic market and for export, including countries with tropical climates.
Specifications
Insulation material
cross-linked polyethylene
Mark
PvVVGEng(A)-LS, PvVGEng(A)-LS-HL, PvVGEng(A)-LS-T
Design
Single-wire round (ok); multiwire round (mc), multiwire sector (ms)
Cable shape
Round
Core material
Copper
Sheath material
Polyvinyl chloride plasticate with reduced fire hazard, with reduced smoke and gas emission
Climatic version
UHL, T, XL
Rated AC voltage
1 kV
Frequency
SBVVBG
Fire hazard class
P1b.8.2.2.2.2.
Operating temperature
-50...50 °C
Number of conductive cores
1,2,3,4,5
Outer sheath material
Polyvinyl chloride plasticate with reduced fire hazard, with reduced smoke and gas emission
Nominal cross-section of conductive cores
400 mm²
Long-term permissible heating temperature of cable cores
70 °C
Availability of reservations
no
Availability of metal screen
Armoured glass
Screen material
Copper strips or copper wires
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
