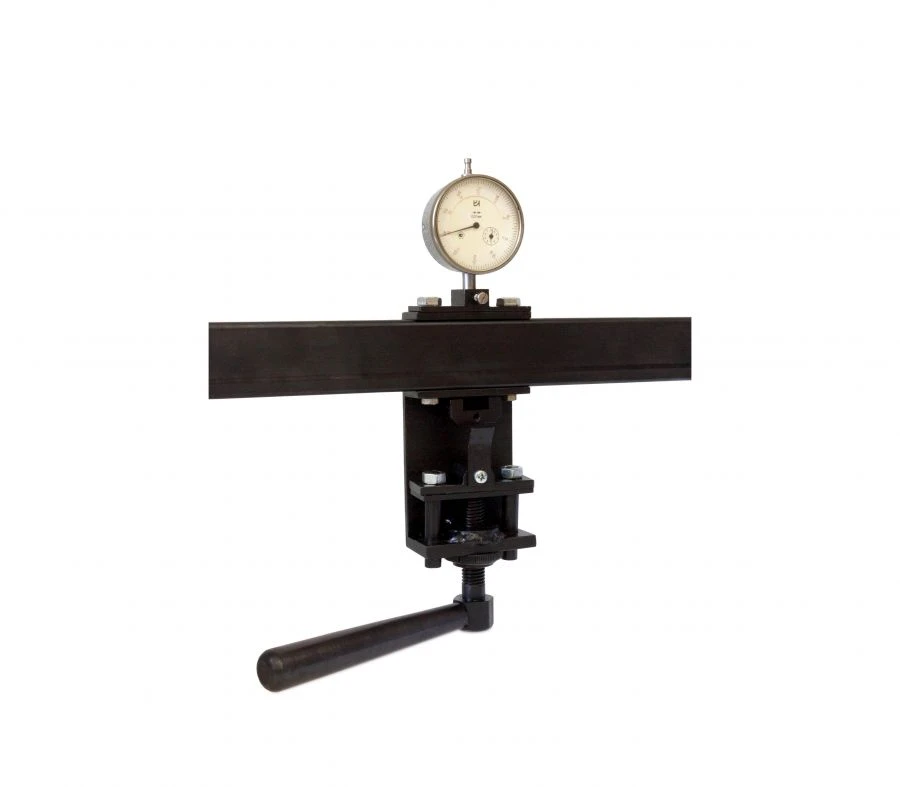

Cable and Wire Tension Meter INTK-4 for Accurate Tension Control in Power Lines

The cable tension control device INTK-4 is designed to measure and control the wire or cable tension force during installation and operation of power transmission lines, as well as forces in: overhead transmission line supports (at least once every 6 years), in accordance with the Rules of Technical Operation of Electric Power Stations and Networks of the Russian Federation (approved by Order of the Ministry of Energy of the Russian Federation dated 19 June 2003, No. 229), cross ties, transoms, anchor structures without breaking the power circuit.

Application is possible for measuring and controlling the tension of metal cables with a diameter from 3 to 8 mm (unlike the tension meter INTK-3 d 8 - 22,5), various bridge structures, derricks, towers and pipes.

The cable tension meter INTK-4 in climatic version UHL category 1 according to GOST 15150-69 is designed for operation at ambient air temperature from minus 60º? to plus 45º?.

The device INTK-4 meets safety requirements according to GOST 22362-77, GOST 12.2.003-91, GOST 12.4.125-83, GOST 12.2.061-81....
