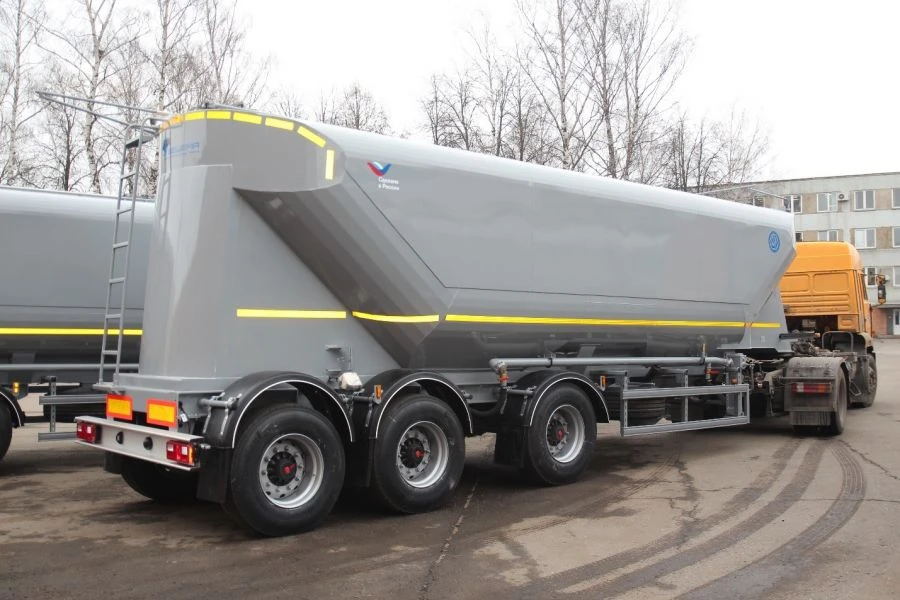

Bulk Material Semi-Trailer Tank BCM-263 for Efficient Alumina Transportation

The BCM-263 tank semitrailers are designed exclusively according to the customer's specifications and are intended for the transport of alumina.

The tank semi-trailer is designed to operate in extreme climatic conditions. In particular, BCM-263 demonstrates excellent performance indicators at air temperatures from -40 to +50 degrees Celsius.

Loading of material into the tank is performed by gravity method, through 4 upper hatches, 500 mm in diameter, the distance between the loading hatches is 2800 mm. Useful volume of the vessel made of 09G2S low-alloy steel is 37 m3.

Unloading of the transported raw material from the tank is performed by gravity method, through 2 lower unloading spigots, 380 mm in diameter each, on which gate valves of gate valve type are installed.

Other technical specifications of BCM-263:

curb weight of the semi-trailer 9960 kg; fifth wheel load 17500 kg; axle load of the semi-trailer 30000 kg; SSU height in loaded condition 1300 mm; 3-axle...
