BC N1-1R-AR-DC24 Interface Module for Inductive Sensors - Power Supply and Signal Conversion

Measurement and Control Devices

Manufacturer: TEKO OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

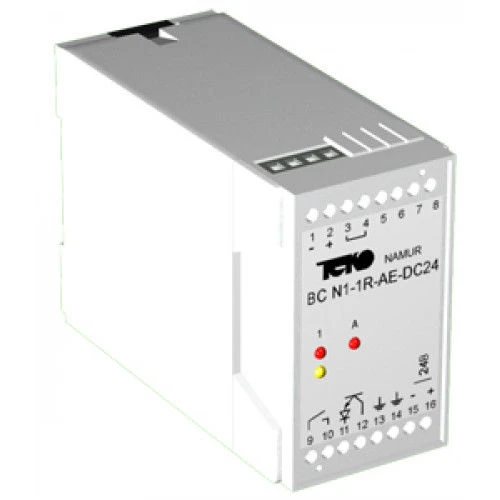

Coupling unit BC N1-1R-AR-DC24 is designed to supply inductive contactless special explosion-proof sensors and conversion of low-current analogue signal from the sensor into an optocoupler signal for control of executive devices.The coupling unit provides: 1. Galvanic isolation of the sensor with the executive device; 2. Conversion of the low-current sensor signal into the optocoupler output signal for controlling the executive device with simultaneous indication of the closed output state; 3.

Inversion of the channel output state by setting a jumper; 4. Control of sensor and sensor communication line serviceability (short circuit, wire breakage); 5. Light indication and opening of the working channel outputs when a malfunction is detected in it; 6.

Formation of the EMERGENCY signal and opening of the emergency channel contacts when a malfunction occurs in the working channel.

Specifications

Recommended switching frequency

Not more than 2 Hz

Maximum switching frequency

200

Type of emergency exit

Relay

Method of attachment

DIN rail

Load resistance of the circuit breaker

1000 ohm

Line resistance between circuit breaker and unit

?50 ohms

Operating temperature range

0...60 °C

Emergency protection threshold (breaker wire break)

<0.1 mA

Emergency protection threshold (short circuit)

>6mA

Response threshold

1,55 ... 1,75 mA

Rated current of the circuit breaker

2,2 mA

Rated voltage at the switch

8.2 V

Weight

0.2 kg

Number of electronic outputs

Number of relay outputs

1 pcs

Number of switches to be connected

1 pcs

Permissible load current (optocoupler/optocoupler)

50 mA

Permissible load current (/relay)

1 ?

Permissible output voltage (relay)

240 V AC / 60 V DC

Permissible output voltage (optocoupler/optocoupler)

50 V DC

Rated supply voltage, Unom.

24 V DC

Rectangular enclosure size, LxWxH

45x75x110

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
