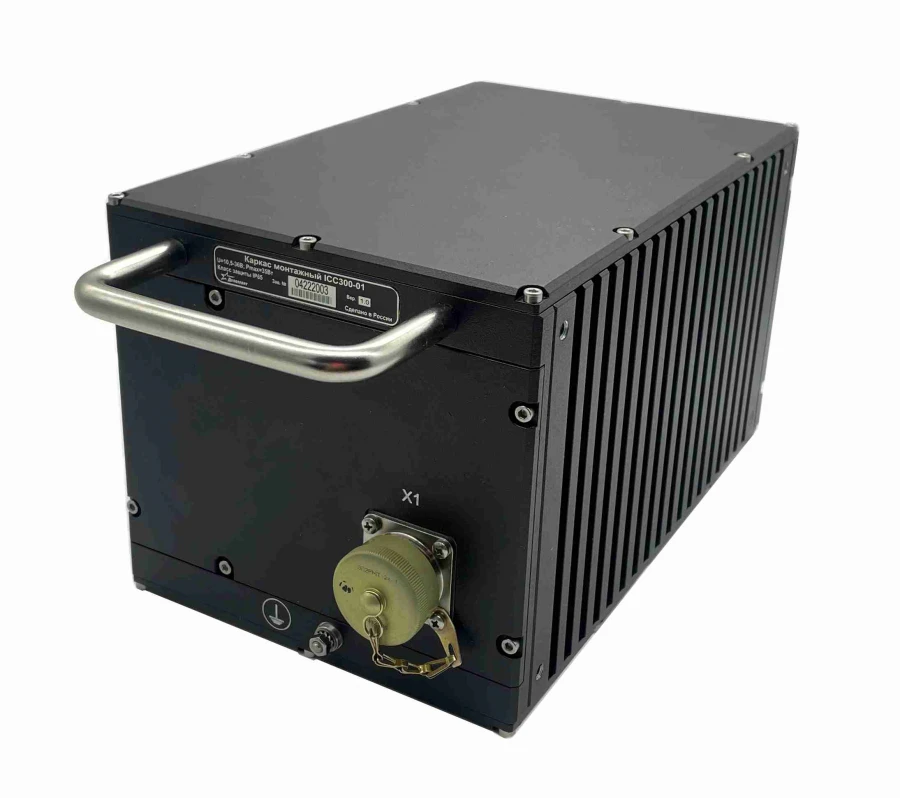

Basic Mounting Frame ICC300 for PC/104+ Modules

Available for Import

Basic Mounting Frame ICC300 for Efficient PC/104+ Module Installation

Computer Parts Modules

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

ICC300 is a basic computer platform for modules in PC/104+ form factor with the possibility of conductive heat dissipation on the case from each module, allowing to install additional expansion modules and to make customised versions.

Specifications

Functionality

Ability to install up to seven PC/104, PC/104-Express and StackPC expansion modules; Ability to develop ruggedised computers on its basis; Ability to implement conductive heat dissipation in the case

Modules included in ICC300

PS351-02 - power supply module; MF02 - filter module

Filter module MF02 characteristics

Input supply voltage 11-36V; Maximum current 8A

Power supply PS351-02 characteristics

Input supply voltage 11 to 36 V DC; Galvanic isolation input/output: 1000 V. Output voltages/currents (power): +12 V / 1.66 A (20 W); +5 V / 6 A (30 W); +3.3 V / 1.5 A (5 W). Overload and overheating protection

Consumption current

Not more than 160 mA (excluding power supply of external circuits)

Resistance to mechanical influences

Exposure to sinusoidal vibrations for frequencies from 10 to 500 Hz with acceleration of 5 g; Exposure to single shocks with peak acceleration of 100 g; Exposure to repeated shocks with peak acceleration of 50 g, number of shocks equal to 1000.

Product weight

No more than 5 kg

Overall dimensions, mm, not more

311x163x153
