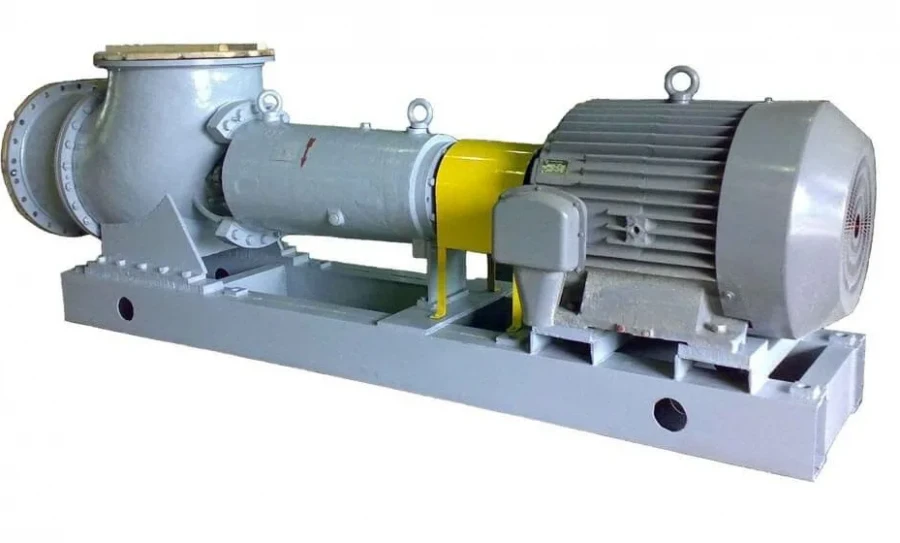

Axial Pump Unit OHG - Reliable and Efficient Solution

Available for Import

Axial Pump Unit OHG - Reliable Pumping for Industrial Applications

Centrifugal Liquid Pumps

Manufacturer: TECHNOSILA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The units are not intended for operation in explosion- and fire-hazardous production. The pumps are driven by an electric motor through an elastic sleeve-finger coupling. Pump and electric motor are mounted on a common foundation frame. Shaft sealing is double gland or (on customer's request) face seal. The packing can be replaced without emptying the unit (except OXG6-25, 30). Depending on the required parameters and density of the pumped liquid, the pump can be equipped with electric motors of other capacity.

Specifications

Climatic version

U, UHL,T placement category 2,3,4 according to GOST 15150

Operating medium

Designed for pumping chemically active liquids in evaporators and installations.

Outlet pressure

0.036...0.075 MPa

Weight

470...2500 kg

Medium temperature

0...140 °C

Feeding

560...9500

Material

Stainless materials, duplex steels, high-strength and gray cast iron are acceptable

Pressure

3.6...7.5 m
