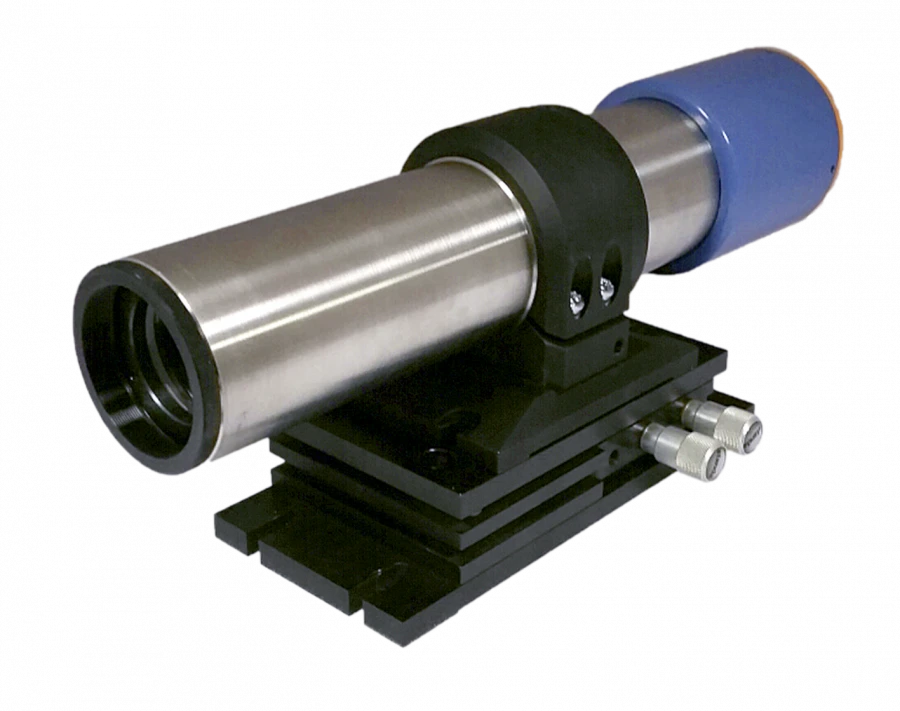

Automatic Collimator AK-05 for Precision Angle Measurement

Available for Import

Automatic Collimator AK-05 for Accurate Angle Measurement and Alignment

Precision Optical Devices

Manufacturer: INERTECH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Autocollimator AK-025

Description

Autocollimator is designed to measure the angles of rotation and inclination of the object, to determine the tolerances of the shape and location of reflective surfaces, to measure the parameters of optical wedges, vibrations, etc. Also this group of optoelectronic devices is widely used for adjustment of various systems and participates in the composition of many verification schemes.

Specifications

Angle measuring range: horizontal plane

±20 ppm

Angle measuring range: vertical plane

±15 angular min

Tolerance limits of absolute error of angle measurements: in the range ±600 arc sec

±0.5 arc sec

Tolerance limits of absolute error of angle measurements: in the rest range

±0.5 arc sec

Discreteness of reference

0.01 arc sec

Maximum distance to the measuring object

2 m

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
