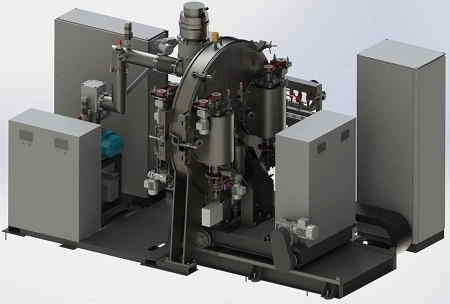

Automated Ion-Plasma Coating System MAP-5 for Turbine and Compressor Blades

Thermal Processing Units

Manufacturer: National Research Center "Kurchatov Institute" - VIAM

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The unit is designed for application of heat-resistant, corrosion-resistant, erosion-resistant, wear-resistant coatings on turbine blades and compressor blades of GTE, hard coatings from metal compositions on cutting tools and parts of GTE, and also allows to carry out ion etching and ion saturation of the treated surface with metal ions

Specifications

Number of parts with dimensions 80 × 180 mm to be machined simultaneously

10 pcs

Number of workpieces with dimensions 80 × 100 mm to be machined simultaneously

20 pcs

Number of simultaneously machined workpieces with dimensions

30 pcs

Speed of coating condensation on the substrate (at arc current 750 A), not more than, µm/minute

0.35

Pressure in the chamber during coating: metallic

0.0266...0.00665

Pressure in the chamber during coating: cermet coating

0.266...0.0665

Pumping duration up to working pressure of 0.0266 Pa, not more than

SBVVBG

Cooling water flow rate

Installed capacity

270 kW

Overall dimensions of the installation (dxhxv), not more than

4300 x 3100 x 3000 mm

Maximum dimensions of the spraying area on the workpiece, not more, (diameter × height)

80 x 380 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
