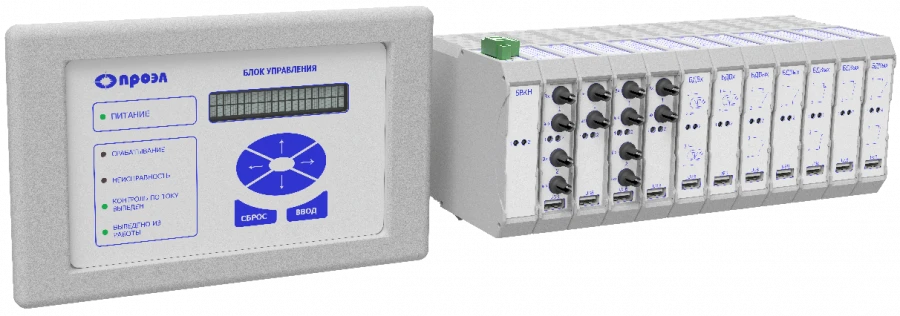

Arc Protection Device OVOD-L for Electrical Safety Applications

Electrical Safety Devices

Manufacturer:PROEL LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The arc protection device is a multiprocessor distributed system with fibre-optic sensors of radial type, designed for disconnection of complete switchgear (switchgear) in the event of short circuits inside switchgear compartments, accompanied by an open electric arc.

Specifications

Power supply voltage

85...264 V

Set of sensors

Block of light detection and testing (BDST); Block of discrete outputs (BDV); Control unit (CU); Block of rectification and voltage control (BVKN); Power supply unit (PSU)

Maximum number of blocks

110 pcs

Time to send a trip signal

Trigger threshold of the device

0.5 mW/cm2

Dust and moisture protection coefficient BUP (IP)

Weight of BUP

0.5 kg

BUP height

148.3 mm

BUP width

236.3 mm

Depth of BUP

45 mm

Dust and moisture protection coefficient of BDSP, BDV, BVKN (IP)

Weight of BDSP, BDV, BVKN

0.15 kg

Height of BDSP, BDV, BVKN

105 mm

Width of BDSP, BDV, BVKN

23 mm

Depth of BDSP, BDV, BVKN

115 mm

Dust and moisture protection coefficient of BP (IP)

Weight of BP

0.6 kg

Height BP

125 mm

Width of BP

40 mm

Depth of BP

100 mm

Consumption power of BDSP, BDV, BVKN

0.75 W

Consumption power of BUP

2 W

Operating temperature range

-40...65 °C

Average MTBF

100000

Average service life

20 year

Warranty period of operation

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
