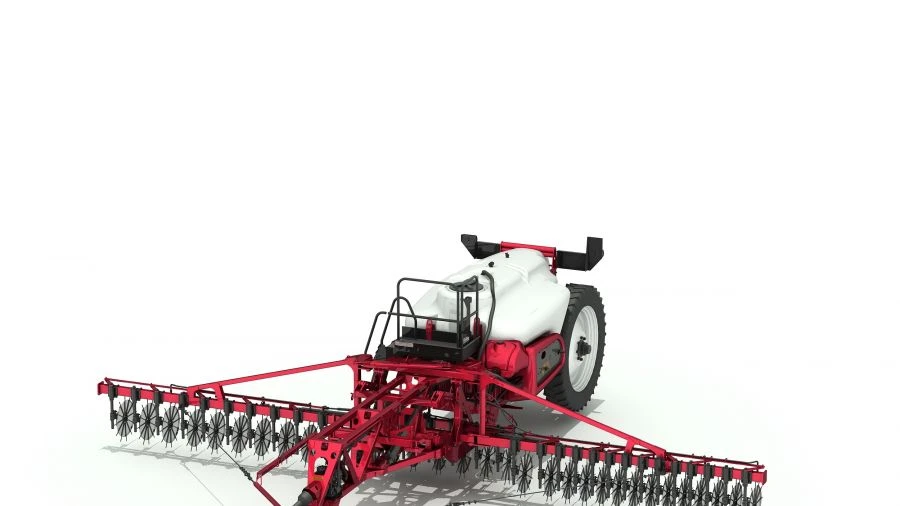

AR-4000/32 Plant Nutrient Applicator for Efficient Crop Nourishment

Aggregated with tractors with a power of at least 120 hp with a rear hitch, hydraulic system with a pressure of at least 16 MPa and rear PTO shank, providing a pump speed of the applicator 540 rpm. It is equipped with thirty-two working bodies in the form of injection wheels and a main tank with a volume of at least 4000 litres. It is designed for in-soil application of liquid mineral complex fertilisers.

It is not intended for the application of ammonia and liquid organic fertilisers. Working conditions: flat fields with slope not more than 8.5°, with soil moisture not more than 28%, with soil hardness in horizons with depth from 0 to 15 cm not more than 1.2 MPa, with content of crop residues in the surface layer of soil not more than 25%. Working speed - not more than 10 km/h.

Working width - 9.6 m; working unit spacing - 0.3 m. Maximum depth of cultivation - from 6 to 8 cm.
