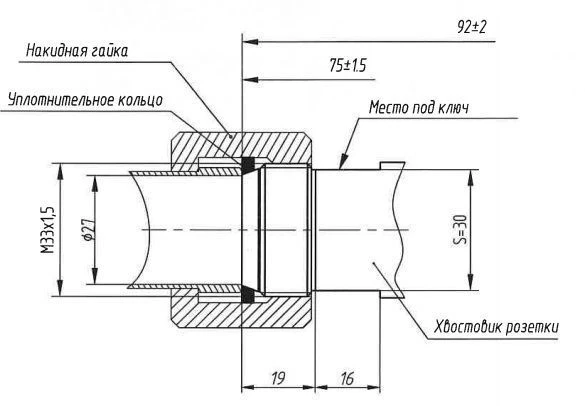

AOC.05.700 Protective Plug for VVER Reactor Control System - Reliable and Durable
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
"It is used in protection control system of VVER type reactor. Climatic execution according to GOST 15150-69 - B5. Protection degree according to GOST 14254-2015 (IEC 60529:2013) - IP68. Coating of contacts - gold External pressure - 6 kgf/cm2 Temperature range - from minus 50 to 100º? Number of joints - 500. Number of contacts - 24 Contact diameter 1,5 mm Maximum operating voltage 310 V Maximum current per one contact - 8 A Maximum cross-section of the conductor cross-section of the soldered wire - 1,5 mm2"
