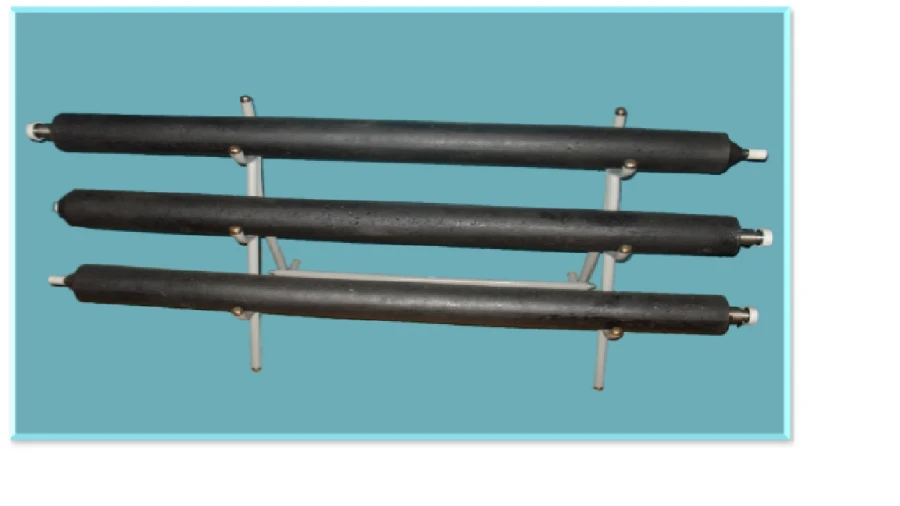

Anodic Grounding Electrode for Effective Corrosion Protection - AZ

Low-Voltage Electrical Panels

Manufacturer: PJSC GAZPROM GAZORASPREDELENIE UFA

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Anodic earthing electrode in a coke-pepper shell is designed for use as a low-soluble anode of deep and surface earthing in systems of electrochemical protection against corrosion of main pipelines and underground metal structures. Structurally, the anode earthing electrode is a steel rod with metal strips welded to it at an angle, coupling and coke-peak composition. A batch of anode earth electrodes of one version is subjected to acceptance tests.

In case of detection of non-compliance with any controlled indicator in the process of testing, the products are rejected. After elimination of the defect, the products shall be repeatedly subjected to acceptance tests. The results of acceptance tests shall be formalised by a protocol or reflected in the log in the form of the manufacturer.

Periodic tests shall be carried out at least once every 3 years, not less than two products of each version that have passed acceptance tests.

Specifications

Type of explosion protection

Width

123 mm

Height

1650 mm

Color

Black

Material of manufacture

Coxa - 70%, peca - 30%

Housing material

Coxa - 70%, peca - 30%

Degree of protection

IP 56

Temperature class

Climatic version

Climatic version "O" category 5

Type

Anodic earthing switch in coke-peak sheathing

porosity

B1/B8 2100/900 MHz %

Compressive strength

16 MPa

Mass fraction of sulfur

1.5 %

Removable current load

1.35 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
