AI-Based Video Analytics System for Mining Enterprises to Improve Safety and Efficiency

Communication Devices Hub

Manufacturer: TRANSMASH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

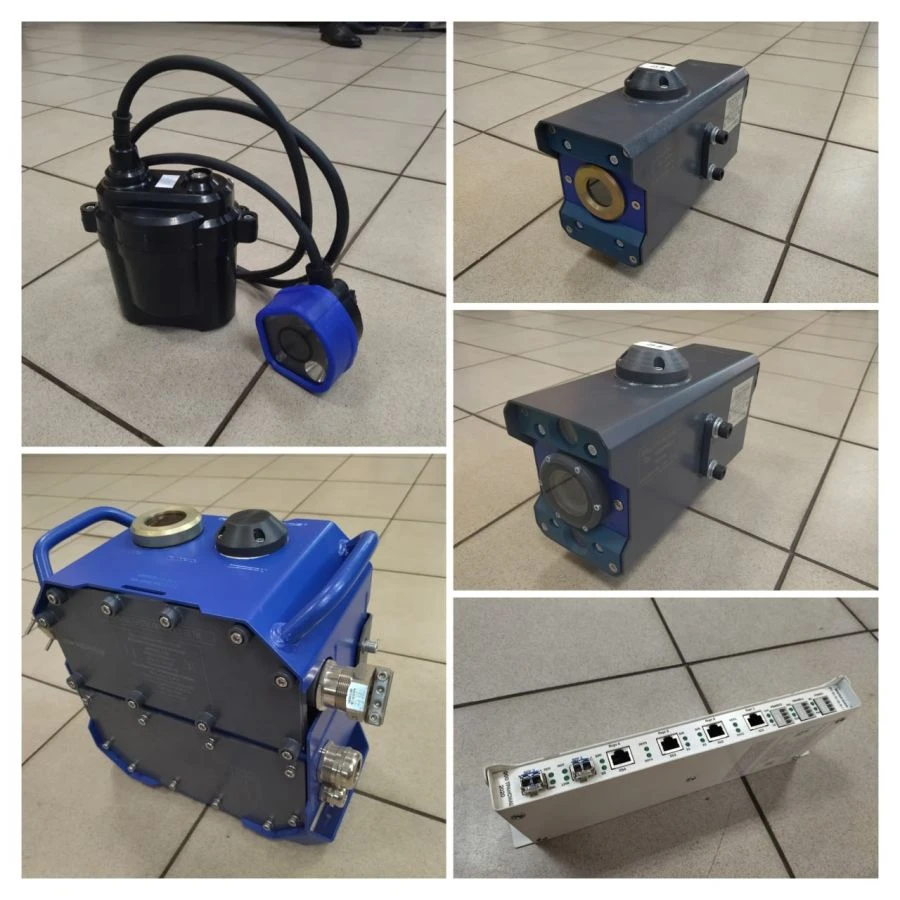

The developed software allows combining prototypes into a single hardware and software complex. Video cameras are connected and broadcast video stream through Ethernet connection of data transmission device "MKPSH-1000P" and further through optical communication channels. The devices are powered by means of power supply "Impulse-1P". The Istok-1R explosion-proof head lamp transmits information from the built-in video camera and methane sensor in the gas-air environment via wireless communication channels implemented in the Impulse-1P power supply. Processing of video streams received from the cameras and the luminaire is performed by the server using convolutional neural network algorithms.

Specifications

Composition of the complex

Intrinsically safe data transmission device "MKPSH-1000P"

Maximum camera resolution

1080p @ 25 fps

Light sensitivity of the camera sensor

0.001

Video cameras

Built-in GPU module

Power consumption of video camera

20 W

Маркировка взрывозащиты видеокамер

RO Ex ia I X/RO Ex ia op is I X

Maximum resolution of the thermal imager

640x480 @ 25 fps

Spectral range of the thermal imager, µm

8...14

Methane concentration measurement range

0.05...5 %

Light intensity of luminaire

6000

Explosion protection marking of the luminaire

RO Ex ia I Ma X

Power supply input voltage

30...150 V

Power supply output voltage

12.5...24 V

Source output current

0.7...2 A

Source explosion protection marking

RV Ex d ma [ia Ma] I Mb

Explosion protection marking of the source with battery power supply

RO Ex ma ia I Ma

Switch supply voltage

10...30 V

Explosion protection marking of switch

RO Ex ia I Ma X

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
