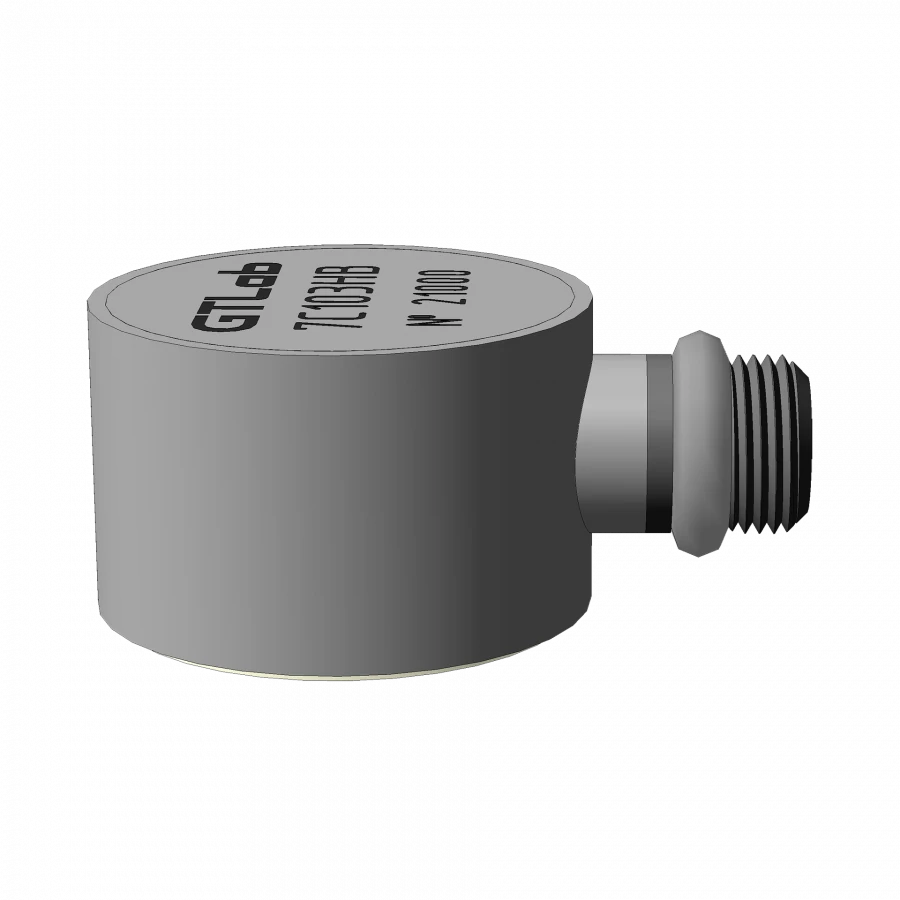

Available for ImportAcoustic Emission Sensor for Early Defect Detection - Model 7C103HB
Manufacturer:GTLAB LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Acoustic emission sensors register defects of objects at an early stage of their development, long before reaching critical values, which provides prevention of emergency situations. The use of acoustic emission sensors allows monitoring the condition of industrial facilities. The principle of operation is based on conversion of energy of elastic waves oscillation in places of defects nucleation into electric signal.
Specifications
Conversion factor
> 300 - 106 V/m
Operating frequency
194 kHz
Bandwidth
50 ... 750 kHz
Electrical capacity (with 0.5 m cable)
150 ... 300 pF
Insulation resistance under normal conditions
> 1,000 megohms
Operating temperature range
-60 ... +120 °?
Housing material
stainless steel
Weight
6 ?
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
