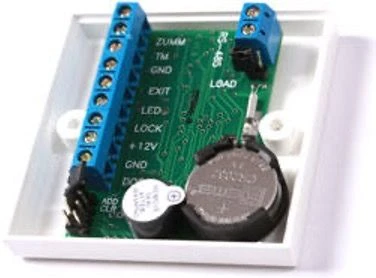

Access Control Network Controller Z-5R (Model Net 8000) for Efficient Access Management

Low-Voltage Electrical Panels

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for use in access control and management systems (ACS) as stand-alone and as part of a network. By connection and work in stand-alone mode controller Z-5R (mod. Net 8000) is similar to the controller Z-5R . Connection to the network is via RS-485 (two-wire connection).

Specifications

Protocol for connecting an external reader (contactor)

IButton (Dallas Touch Memory), DS1990A emulation, Wiegand 26

Maximum number of keys/cards

8168 pcs

Event memory capacity

8192

Sound/light indication

Armoured glass

External LED and external buzzer control

Armoured glass

Output for lock connection

TIR transistor

Switching current

5 A

Jumper for selecting the lock type

Electromagnetic, electromechanical

Setting the duration of lock opening

0.1...25.5

DC supply voltage

8...18 V

Current consumption

30 mA

Protection against incorrect switching on

Armoured glass

Dimensions

65x65x20 mm

Housing material

Plastic

Network interface

RS-485

Maximum network line length

Up to 1200 meters

Maximum number of controllers in the line

255 pcs

RS-485 network communication speed, baud rate

19200/57600(auto)

Factory setting of the network address

Backup power supply for watches

Cr2032

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
