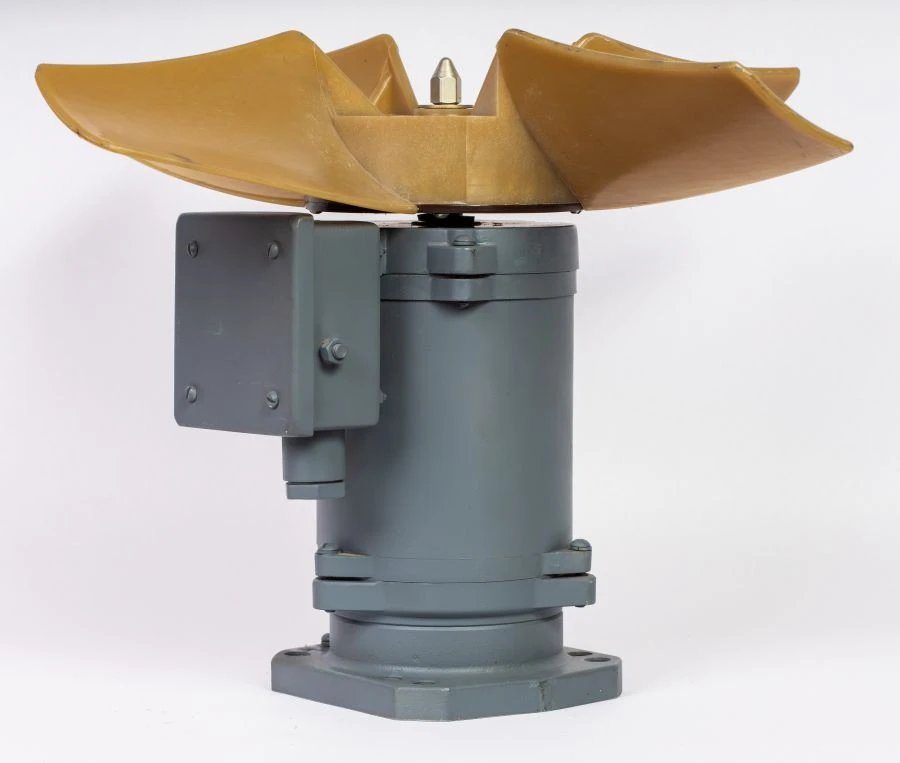

Three-phase asynchronous motor 2DAT100-250-1,5-U1/UHL1

Electric motors of closed version with natural cooling are designed to work together with KCP-4 impeller in the air cooling system of oil radiators of powerful transformers and reactors. The operating position in space is vertical, with the terminal panel located inside the motor. Power supply is carried out from AC network with voltage 220/380V and frequency 50Hz. The operating mode is continuous, the degree of protection of the electric fan is IP54.
