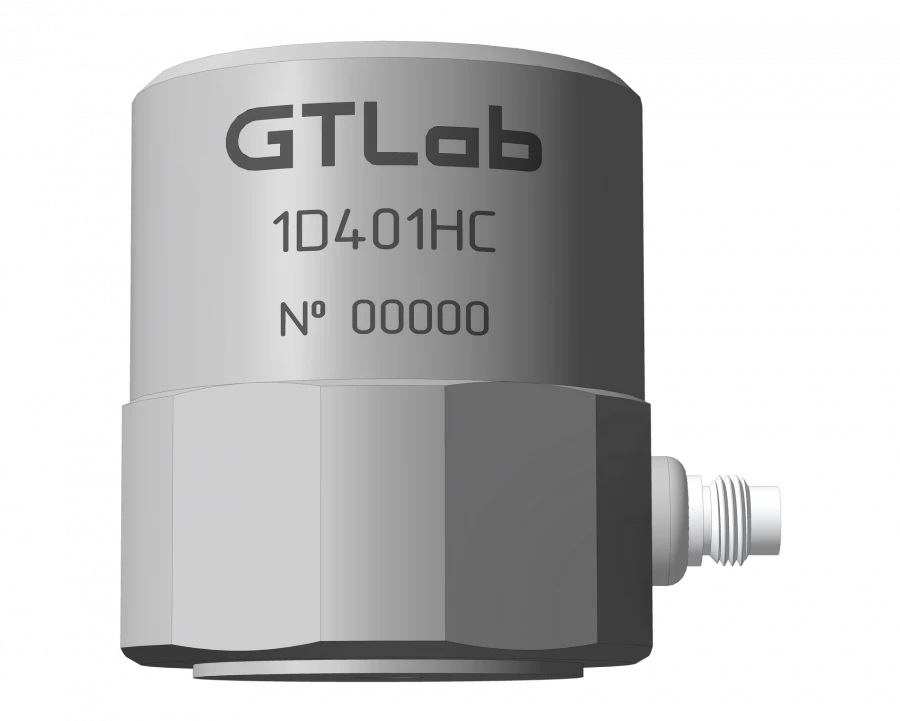

1D401HC Digital Output Accelerometer for Vibration Measurement

Available for Import

1D401HC Digital Output Accelerometer for Accurate Vibration Measurement

Movement Measurement Devices

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Axelerometers with digital output - vibration transducers with built-in ADC. Designed to measure vibration and shock acceleration, registration, recording and digital post-processing of the signal. Virtual instruments of GTL software: spectroanalyser (octave, third-octave, direct), mutual spectrum, envelope spectrum, oscilloscope, AFFC (amplitude phase-frequency response), modal analysis, octave analysis, AC and DC voltmeters, frequency meter, flexible filters of upper VFD and lower VLF frequencies (up to 50 orders of magnitude), signal recording (time, level). The software is regularly updated. Always use the latest up-to-date version.

Specifications

Conversion factor

10 / 20 / 50 / 100 mV/(m?s2 )

Maximum value of the measured acceleration amplitude

10 / 20 / 50 / 100 m/s2

Maximum impact (peak)

± 1,000 m/s2

Operating frequency range (frequency response non-uniformity ± 3dB)

0,5 ... 5 000 Hz

Operating temperature range

-20 ... +70 °?

Output interface

USB 2.0 full speed

Number of ADC bits

24 bits

Input signal sampling frequency

48 000 Hz

Time to establish operating mode

10 ?

Power supply voltage

+ 5 ?

Consumption current

< 80 mA

Housing material

stainless steel

Connector type

C03B

Noise level RMS (1 ... 5 000 Hz)

< 0.02 m/s2

Weight

250 ?

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
