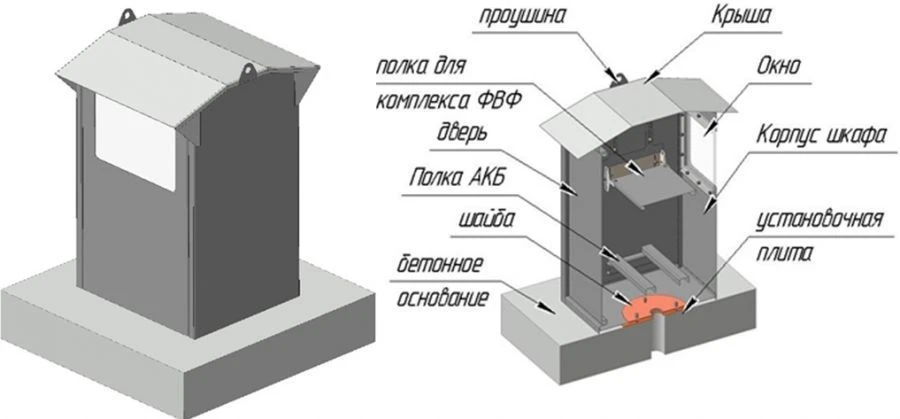

???-?-650?1000?600-??. Telecommunication outdoor cabinet designed for placement of video surveillance equipment, photo and video fixation of traffic violations. Mounting on a concrete base. The product is an outdoor vandal-proof telecommunication cabinet designed for round-the-clock protection of the installed inside the complex of photo-video registration of traffic violations (hereinafter referred to as the PVF complex), batteries and/or moulage (imitator) of the PVF complex from illegal actions of third parties, as well as from the impact of precipitation, dirt, dust and other weather and road conditions.
The metal box is equipped with an upper shelf for installation of FVF complexes. The design provides height adjustment of the upper shelf (for installation of various FVF complexes in such a way that metal parts do not block the view for radar, camera and illumination spotlight). The shelf design provides vertical and horizontal adjustment of the angle of inclination of the photofixation complex in the cabinet.
Specifications
Height
1000 mm
Width
650 mm
Protection class
IP54
Type of accommodation
outdoor
Operating temperature range
-40...50 million m³
Connector
no
Cable type
no
Device type
Outdoor telecommunication cabinet
Depth
500 mm
Availability of fasteners to the support (pole)
no
Form factor (rack-mounted, freestanding)
no
Type of optical ports
no
Equipment
no
RAM
no
Number of processor cores
no
Slots
no
Number of processors
no
Weight
110 m² living area
Length
500 mm
Type of accommodation
outdoor for surface mounting
Type of construction
unassembled
Usable depth
1000 mm
First characteristic digit of the degree of protection designation
5
Second characteristic digit of the degree of protection designation
4
Type of floor support
no
Availability of fasteners to the support (pole)
Armoured glass
Type of coloring
Powder
RAL color
7035
Material
Cold-rolled steel
Material thickness
1.5 mm
Upper limit of operating temperature
SBVVBG million m³
Availability of a shelf for mounting equipment
Armoured glass
Availability of radio-penetrating glass
Armoured glass
