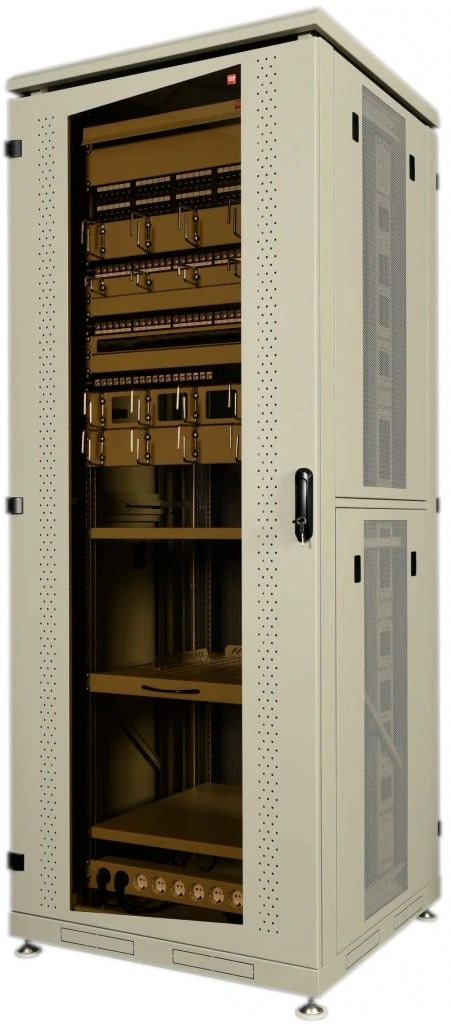

The MTK telecommunication cabinet (modular telecommunication structure) is a unified line of components from which numerous variants of cabinets can be assembled to solve the following tasks:
- Placement of office (campus) communication nodes;
- Receiving and wiring a sufficiently large volume of cable routes inside the cabinet;
- Convenient access to the installed equipment, the possibility of its expansion without significant reassembly of the entire structure;
- Aesthetic office appearance of the construction.
Specifications
Height, U
22...52
Width
800 mm
Usable depth
1010 mm
Material
Cold-rolled steel
Type of coloring
Powder
Type of door lock
Locks with multi-point locking system
Type of side panels
Removable, lockable, single or double. Filling: metal or perforated.
Layout
Vertical, batch connection possible
The first characteristic digit of the degree of protection designation, not less than
2
Type of construction
collapsible
Type of accommodation
Floor
Maximum distributed load
1500 m² living area
Second characteristic digit of the degree of protection designation, not less than
1
Type of floor support
Adjustable supports; castors
Availability of fasteners to the support (pole)
no
Type of front door(s)
Single leaf door, double leaf door. Filled: metal, glass, perforated.
