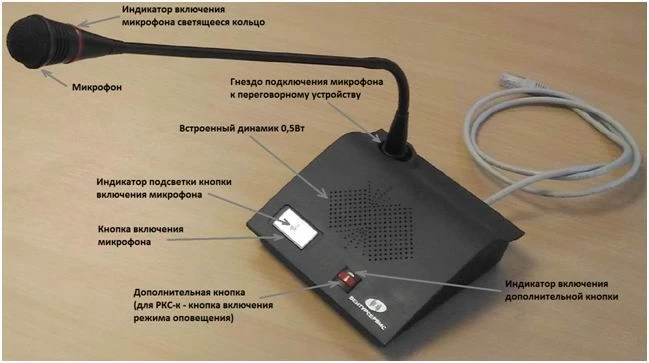

Mini Studio MCR.D VABM.465.275.4 - Dual-Mode Dispatcher Microphone Console

Brand: VENTURSERVIS

$90 - $300 USD

MOQ: 20 pieces

Key Features

DC supply voltage: 12...48 thousand m³

Consumption current: 0.2

Communication line: 4x wire, compatible with PM channel

Entry and exit: Symmetrical, transformerless, R =600 ohms

Supplier Information

VENTUR-SERVICE LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

MSR.D is supplied for operation as a part of the distributor of communication channels combined RKS-k n.n.n as a two-mode microphone dispatcher's console:
1.MSR.D can be used as a terminating link of trunk communication equipment for high-quality reception and transmission of speech information when connected to a four-wire communication line of PM channels (+4dB/-13dB - PRM/PRD), as well as for operation in signal level-compatible dispatch communication systems.
2.Additional button (button for switching on the notification mode) on the front panel of the MSR.D dispatcher console transfers the audio signal transmission from the dispatcher console to the connectors of the local notification system RKS-k and initiates the "dry contact" triggering on the RKS-k connectors synchronously with pressing the button for switching on the microphone.
Switching on/off the microphone is performed by a button on the front panel of the MSR.D console or by a foot pedal (variant MSR.D.p). .

Specifications

DC supply voltage

12...48 thousand m³

Consumption current

0.2

Communication line

4x wire, compatible with PM channel

Entry and exit

Symmetrical, transformerless, R =600 ohms

Nominal PPM/PDP levels

-13/+4 dB

Output power of the built-in amplifier

0.25 cm³

Level adjustments: by reception

-60…0 dB

Level adjustments: by gear

-13…+13 dB

Запись ПРМ/ПРД

при заказе МСР.Д

Modes of operation

Dispatching console for selector communication; dispatching console for local warning system

Possibility to turn on the microphone from the pedal

When ordering MSR.D.p (the pedal uses the record sound output jack to connect the pedal)

Product composition

1) Ministudio MSR.D-1 pc. ; 2) Patch Cord cat.5e,2m-1 pc.; 3) Active sounding system-1 pc.; 4) Power adapter ?220V,50Hz/=24V*-1 pc.; 5) Power extractor*-1 pc.; 6) Microphone switch pedal*-1 pc. (*-Supplied by agreement with the customer).
