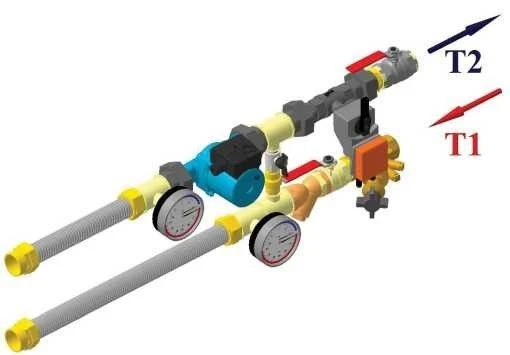

A set of compact fittings, which serve to regulate heat output and protection against defrosting of water heat exchangers. VECTOR water mixing units are used to regulate the operation parameters of both separate water heat exchangers of duct ventilation systems and heat exchangers built into ventilation devices: central air conditioners and supply chambers, compact air conditioners, air curtains.
With the help of automatic control systems, the main protective functions of the ventilation system, including defrost protection, are constantly monitored.
The size of the unit depends on the flow rate of the heat carrier (m3/h), which passes through the heat exchanger.
A distinction is made between right-handed (R) and left-handed (L) units.
The operating temperature range of the heat carrier at the point of connection to the control centre is +5... +110 C. +110 ?.
Permissible resistance value at the consumer installation is up to 30 kPa.
VECTOR equipment includes:
-thermomanometers, instrumentation.....
