Advanced Panoramic Aviation Indicator PAI

Name: Advanced Panoramic Aviation Indicator PAI
Brand: PAI
Availability: InStock

Brand: PAI

$42,000 - $150,000 USD

MOQ: 1 pieces

Key Features

Resolution: MFI is made on the basis of the colour active-matrix liquid crystal screen with the size of the working field 609×228 mm with the resolution of 3200×1200 pixels. Taking into account the partial overlapping of the keyboard panel the size of the MFI working

Brightness: The brightness of white image in "Day" mode is from 6 to 1000 cd/m2; in "Night" mode - from 6 to 1000 cd/m2.

Modules: Two halves of the image from processors, as well as superimposition on the functional graphics of the TV image received on FC-AV channels is made in a separate module of 6U format based on FPGA

???????????????: MFI works under the control of two independent microprocessors "Elbrus-1C+" with the frequency not less than 800 MHz with the built-in graphic accelerator of high performance. Each of the processors performs construction of graphic image of 1600×12 format

Supplier Information

RPKB OJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

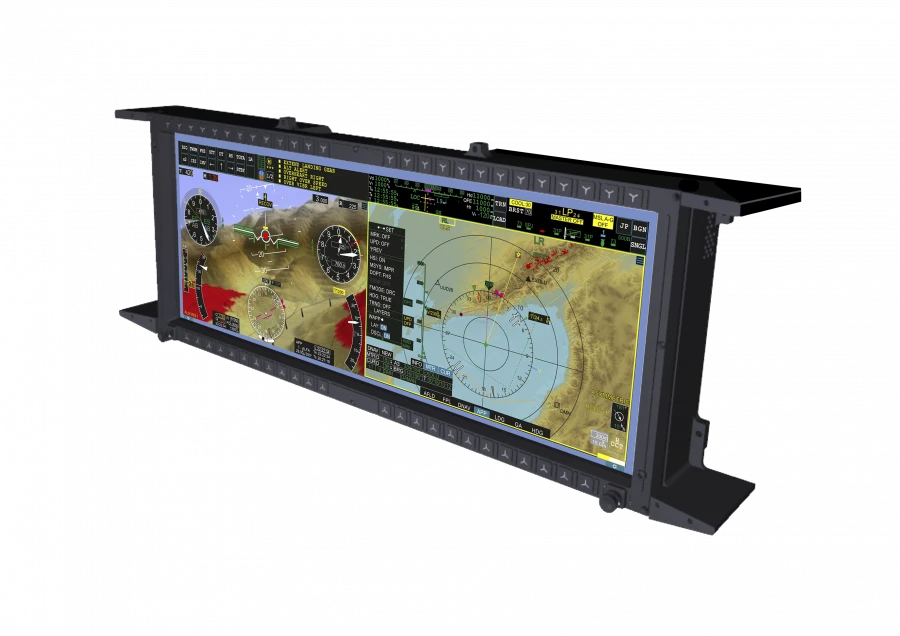

Panoramic aviation indicator with a screen diagonal of 25 inches and screen aspect ratio of 8:3, equipped with a touch panel, is designed to provide advanced trends in the construction of aircraft information display systems.

Specifications

Resolution

MFI is made on the basis of the colour active-matrix liquid crystal screen with the size of the working field 609×228 mm with the resolution of 3200×1200 pixels. Taking into account the partial overlapping of the keyboard panel the size of the MFI working

Brightness

The brightness of white image in "Day" mode is from 6 to 1000 cd/m2; in "Night" mode - from 6 to 1000 cd/m2.

Modules

Two halves of the image from processors, as well as superimposition on the functional graphics of the TV image received on FC-AV channels is made in a separate module of 6U format based on FPGA

???????????????

MFI works under the control of two independent microprocessors "Elbrus-1C+" with the frequency not less than 800 MHz with the built-in graphic accelerator of high performance. Each of the processors performs construction of graphic image of 1600×12 format

Coverage

The screen has a contrasting anti-reflection coating with a specular reflection coefficient of less than 1 per cent.

Maximum number of displayed colours

Not less than 16 mln.

Backlighting

Backlighting can be adjusted independently for left and right half of the image. Independent adjustment of 1/4 screen width windows is an option
