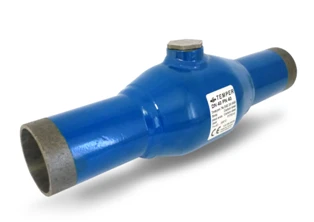

Welded Branch Valve 262 (Separating Valve) 262 20 150 Available for Import

Welded Branch Valve 262 (Separating Valve) for Pipeline Construction

Ball Valves
Manufacturer: TEMPER LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

262 welded branch tap (isolating valve), 26220065 262 welded branch tap (isolating valve), 26220080

Description

It is used in pipeline constructions with pre-insulation.

To prepare for future connections during the installation phase of the pipeline.

A 272 series tap is used for pressurised tapping.

Connection type:

welded/welded

Work Environment:

District heating networks, oil products, fuels and lubricants, other liquids free from abrasive contaminants. Natural gas, liquefied petroleum gas, gaseous media not aggressive towards valve materials.

Specifications

Airtightness class
Class "A" GOST R54808-2011
Diameter
150 mm
Nominal pressure
25 MPa
Construction length
350 mm
Connection type
Welded
Aisle
Standard
Flange for mounting the actuator
without flange
Execution
fully insulated
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
25 year
Warranty period
3 year
Warranty period, cycles
10000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
