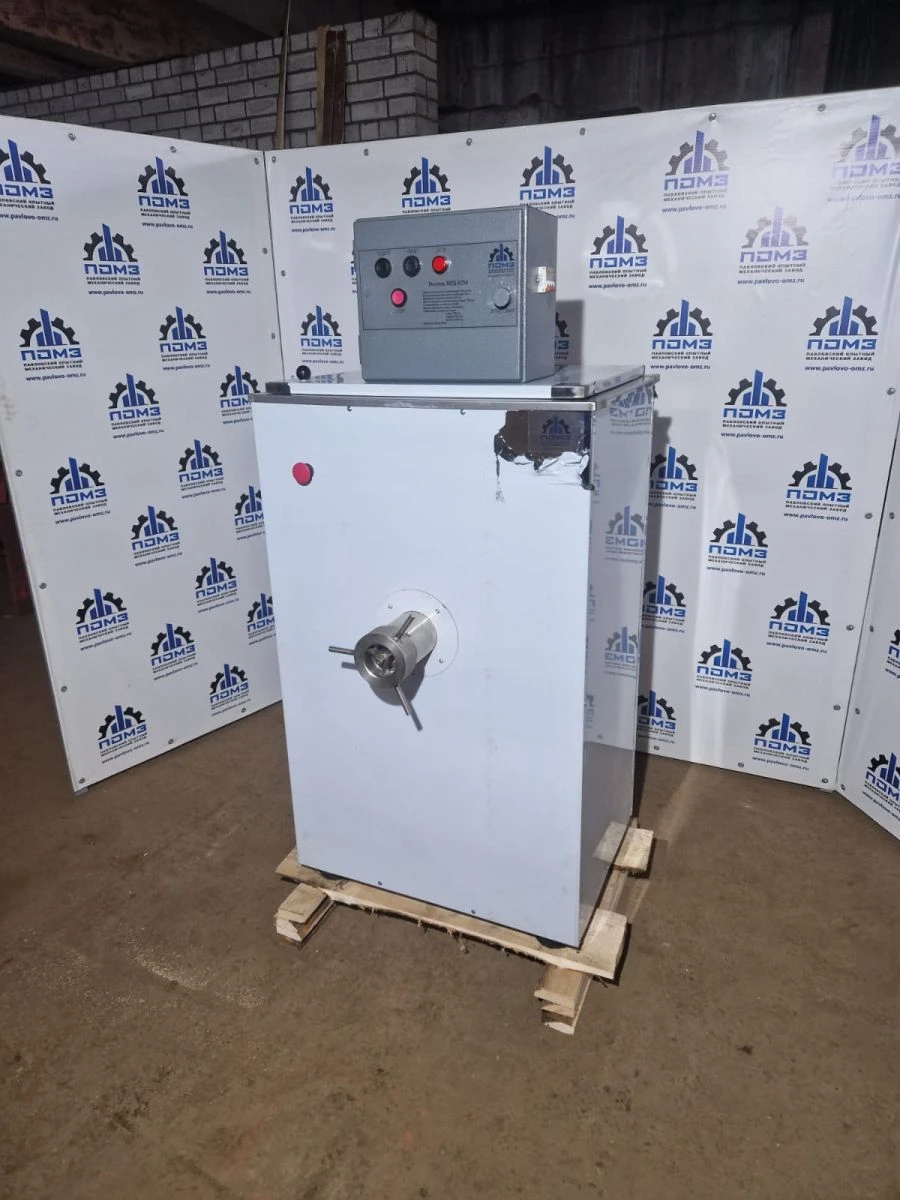

Volchok VRD-82

Designed for continuous chopping of lump meat.

Specifications:

Capacity at chopping of fatty meat through the grate with holes of 3 mm diameter not less, kg/hour300
Nominal grid diameter, mm82
Geometric capacity of hopper, m3 0,06
Discharge height of chopped raw material, mm760
Installed power, kW3,0
Rotation frequency , rpm960
Screw speed, s-1(rpm)5,3(318)
Occupied area, m20,5
Overall dimensions(mm):
780x760x1280
