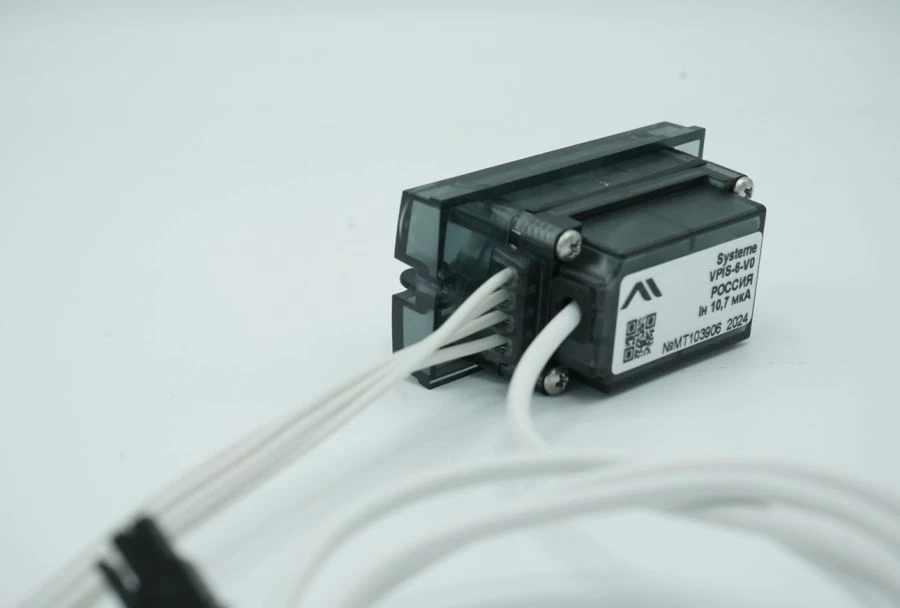

Voltage Presence Indicator Systeme VPIS-6-VO for Medium Voltage Applications

The Systeme VPIS-6-VO voltage presence indicator is designed to indicate the presence of voltage on the input and output lines of medium-voltage 6-20kV switchgears. In this version the nominal voltage is 6kV. The device is connected to the outputs of the capacitor of the feed-through insulator of the switchgear "RME" (capacity (305) pF) by means of a cable (length 200 mm) and indicates the presence of voltage in the network with three red LEDs. For this version, a cable (length 1000 mm) is provided for connection to the short-circuit current flow indicator.
