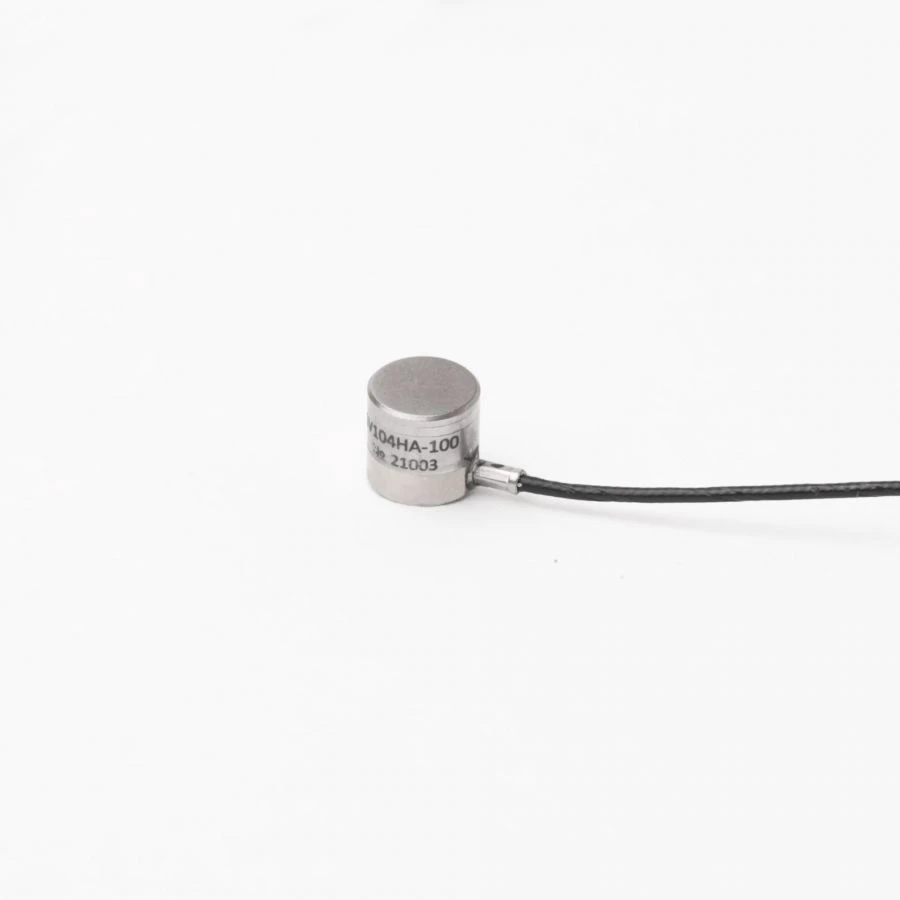

Voltage Output Accelerometer with High Noise Immunity for Vibration and Shock Measurement - 1V104HA-100
Manufacturer:
GTLAB LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Accelerometers with voltage output are electromechanical transducers with increased noise immunity for measuring vibration and shock accelerations. Acceleration vibration transducers with voltage output for general purpose are designed for measuring parameters of vibration processes (in multichannel systems, modal analysis, analysis in industrial sanitation).
Specifications
Conversion factor
10 mV/(m-s-2)
Relative transverse conversion ratio
< 5 %
Maximum value of the measured acceleration amplitude
± 500 m/s2
Maximum impact (peak value)
± 100,000 m/s2
Operating temperature range
-55 ... +125 °?
Operating frequency range: ? frequency response irregularity ± 3 dB ? frequency response irregularity ± 1 dB ? frequency respons
1 ... 24,000 Hz; 4 ... 15,000 Hz; 10 ... 10,000 Hz
Natural frequency in fixed state
> 50 kHz
Noise level, RMS (1 Hz ÷ 10 kHz)
< 0.01 m/s2
Output impedance
< 100 ohms
Power supply: voltage; current
+ (18 ... 30) V; 2 ... 20 mA
DC output voltage level
8 ... 13 ?
Housing material
Titanium alloy
Coefficient of influence of ambient temperature
± 0,2%/ °?
Time to establish operating mode
4 ?
Weight (without cable)
1,8 ?
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
