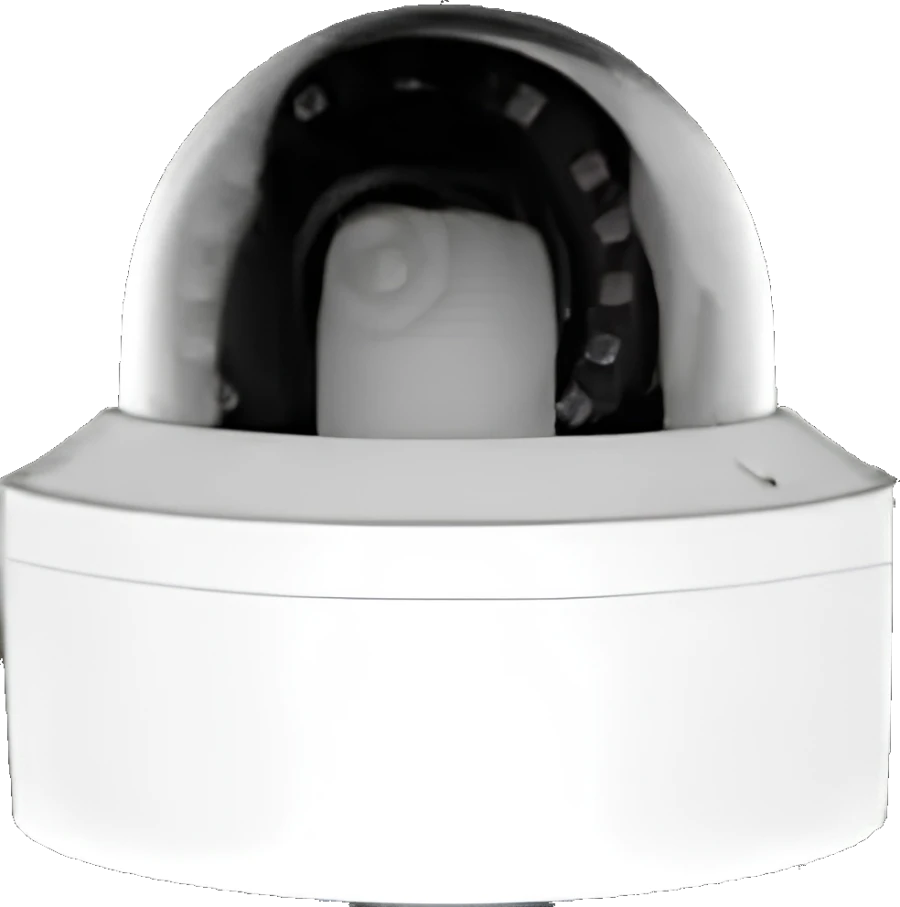

Vision Camera for Surveillance RVX-4114-2.8 for Indoor and Outdoor Use

Digital Video Cameras

Manufacturer:RUBETEK RUS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Machine vision camera RVX-4134 RUBETEK Camera with machine vision RVX-4114-3.6 RUBETEK

Description

Camera with machine vision RVX-4114-2.8 is designed to organise street and indoor video surveillance. The camera has IR-illumination, providing visibility of the object of observation in the absence of light or insufficient illumination. The camera has a lens with a fixed focal length.

The camera is equipped with an additional filter on the power supply and has built-in protection against polarity reversal. The camera can be installed on any conductive surface in a horizontal or vertical position. The installation location is selected according to the viewing angles and the area to be monitored.

The device is designed for continuous round-the-clock operation and belongs to the restorable, periodically serviced products.

Specifications

Overall dimensions (diameter x height), not more, mm

113x103

Camera resolution, MP

Nutrition

DC 12V, PoE IEEE 802.3af

Power consumption, max.

12.95 W

Sensor

1/3 CMOS progressive scan sensor

Sensitivity

0.01 lux (color), 0.001 lux (black and white)

Day/Night mode

IR filter with auto switching

Electronic shutter, s

PAL/NTSC: 1/3 – 1/100000

Focal length

2.8 mm

Camera viewing angles, degrees

105 (D), 60 (C), 120 (E)

IR illumination

25 m, Smart IR

Compression formats

N.264 BP / N.264 MP / N.264 HP / H.265 MP

Simultaneous transmission of 2 video streams

Got it

Resolution of the main video stream

Up to 2560 x 1440

Resolution of additional video stream

Up to 1280 x 720

Frame rate, fps

Up to 25

Bitrate

512 - 8192 Kbps, VBR / CBR (variation ? 10%)

Backlight compensation technology

BLC, HLC

Noise reduction

2DNR, 3DNR

Extended dynamic range

DWDR

Video transmission protocol

RTP over TCP / RTP over UDP

Protocols

TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, UDP, ONVIF

Network interface

RJ-45 (10/100Base-T)

OSD title display

Text, date, time

Operating temperature range

-40...50 °C

Case

Dome, metal

Degree of enclosure protection

IP66

Weight, not more

500 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
