Available for Import

Vacuum Resistance Heating Furnace PSEV for Thermal Processing

Electric Resistance Furnaces

Manufacturer: GKMP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The vacuum resistance furnace is designed for heat treatment of products by hardening, tempering and annealing in oil, vacuum de-oiling at a maximum temperature of 1200 ºC.

Field of application: production of products of electronic industry, instrumentation, mechanical engineering, scientific research.

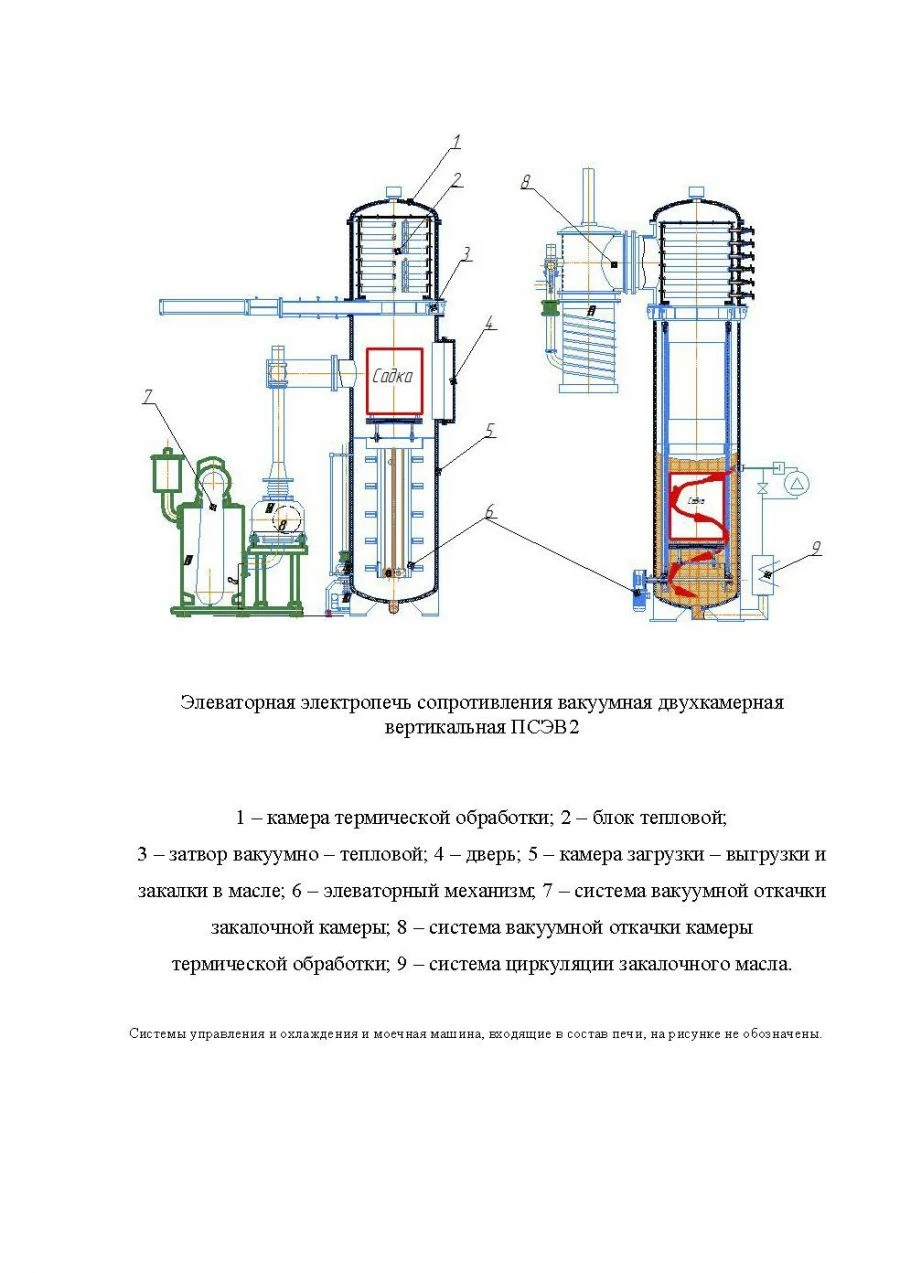

The furnace is a cylindrical vertical casing with a door and a lid. In the chamber of PSEV furnace there is an elevator mechanism, by means of which the cage is moved from the heating zone to the lower part of the chamber for heat treatment in oil.

Specifications

Type of product according to PP RF 616

Electric resistance furnaces

Mark

PGBA

Model

PSEV

Number of independent heating zones, not less:

Power

SBVVBG kW

Climatic version

UHL4 according to GOST 15150

Cooling water temperature, max.

at inlet - 25; at outlet - 40 °C

Maximum cooling water flow rate

2,8 m³/hour

Rated current frequency:

SBVVBG

Rated supply voltage

380 V

Pumping time, max.

Weight, not less/not more

5500/6000 kg

Weight of the cage, not less:

20 kg

Transportation time from the heating zone to the cooling zone, not more:

Uniformity of temperature maintenance in the working space in the steady-state mode in the temperature range from 600 to 1200°C,

±5 °C

Overall dimensions (excluding chiller dimensions), max.

Width - 2840; Length - 1400; Height - 3400 mm

Medium in the working space:

during heating and holding - vacuum; during cooling - oil/vacuum.

Overall dimensions of the working space, not less:

diameter - 200; height - 200 mm

Rated temperature, not less than

1200 °C

Maximum residual pressure at maximum temperature after pre-degassing of the heating module, not exceeding

1,33*10(-3) (1*10(-5))

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
