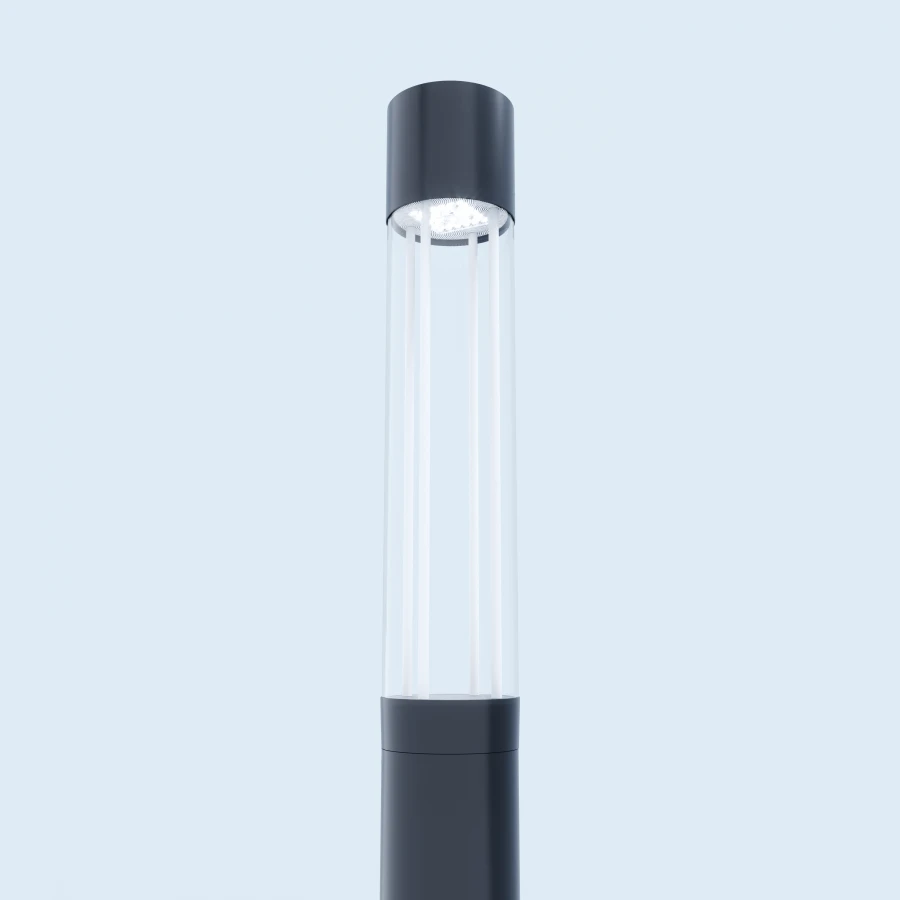

Urban LED Light Fixture LV-GLOWTOP for Effective Public Space Lighting

LED Lighting Fixtures

Manufacturer: LEDVIZOR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Modern urban luminaire for public space improvement solutions. It is a support-integrated luminaire responsible for general rather than localised illumination. Polycarbonate lenses, raised on a 3.5 metre high support, form the widest possible beam of light.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Color rendering index (CRI), not less than

Light output, lm/W, not less than

105

Degree of protection (IP)

IP66

Type by installation location

fixed, outdoor, flange mounted

Climatic version

UHL1

Pulsation factor

5 %

Luminous flux, lm

1150...3600 lm

Upper operating temperature value

45 °C

Power consumption

9...32 W

Housing material

polymer-coated steel

Height

2500...5000 mm

Width

250 mm

Length

250 mm

Net weight

42...81 kg

Lower operating temperature value

-40 °C

Protection class against electric current

Correlating color temperature (CCT)

2700...6500 K

Power factor

0.95

Rated supply voltage

230 V

Type of supply current

Variable

Type of conditional light intensity curve in the equatorial plane

circularly symmetrical/axial/lateral/asymmetrical

Type of light intensity curve in characteristic meridional planes

L/S.

Light distribution class

Mains frequency

SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
