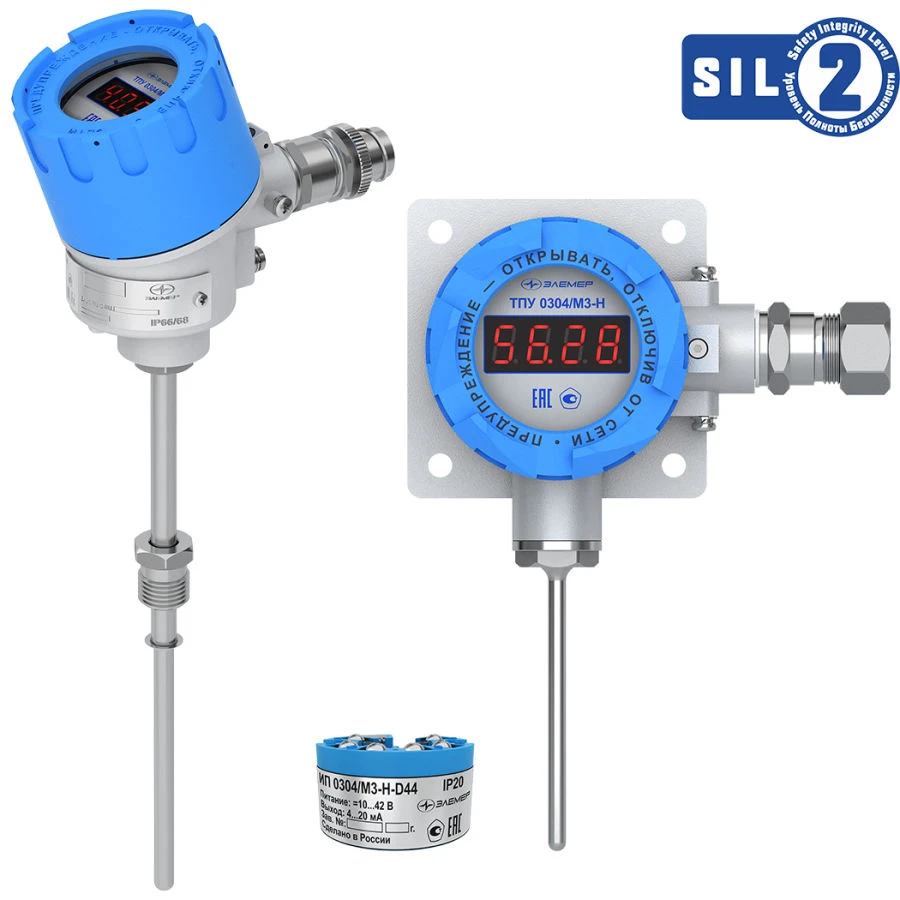

Universal Temperature Transmitters TPU 0304/M3-H for Accurate Temperature Measurement

Temperature Measurement Devices

Manufacturer: ELEMER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Thermoconverters universal TPU 0304/M3-H are designed to measure and convert the temperature value of various media into a unified current output signal 4...20 mA + HART. Universal thermal converters TPU 0304/M3-H are used for operation with liquid, loose, solid and gaseous media in oil, gas, chemical industry, metallurgy, power engineering, atomic energy facilities, at sea-based facilities, etc. The use of thermal converters is allowed for the use of the temperature of different media. The use of thermal converters is allowed for temperature control of aggressive media in relation to which materials in contact with the measured medium are corrosion-resistant. For universal thermal converters TPU 0304/M3-H there is a possibility of installation of two sensitive elements (both TC and TP) in one protective casing with the function of "hot redundancy".

Specifications

Type of device

Microprocessor

Measured temperature range

-196...+1800 degrees C

Type (NCC) of primary converter

100M, Pt100, TJK (J), TJK (L), TCA (K), TPP (S), TPP (B), TNN (N)

Output signal, mA

4...20 mA + HART

4-wire connection diagram of primary converter

Armoured glass

Hot Standby functions

For 2 CEs

Power supply voltage

=10...42 ?

Accuracy class

From 0.08% (order index A0 for modification /M3-H); from 0.15% (order index A), from 0.25% (order index B)

Inspection interval

4 years

Galvanic isolation between input and output circuits

Armoured glass

Climatic designs

?? (-25+70 ?), ?1 (-55+70 ?), ?3 (-25+80 ?), ???.3.1 (-25+70 ?) , ???1 (-60+70 ?)

Dustproof

IP66 / IP67 / IP68;

Electromagnetic compatibility

IV-A;

Performances

General industrial, explosion-proof: Ex ia, Exd, Exd ia

Warranty period

24 months (from the date of commissioning) or 36 months (from the date of shipment), extended warranty period - upon agreement.

UPB 2 (SIL2)

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
