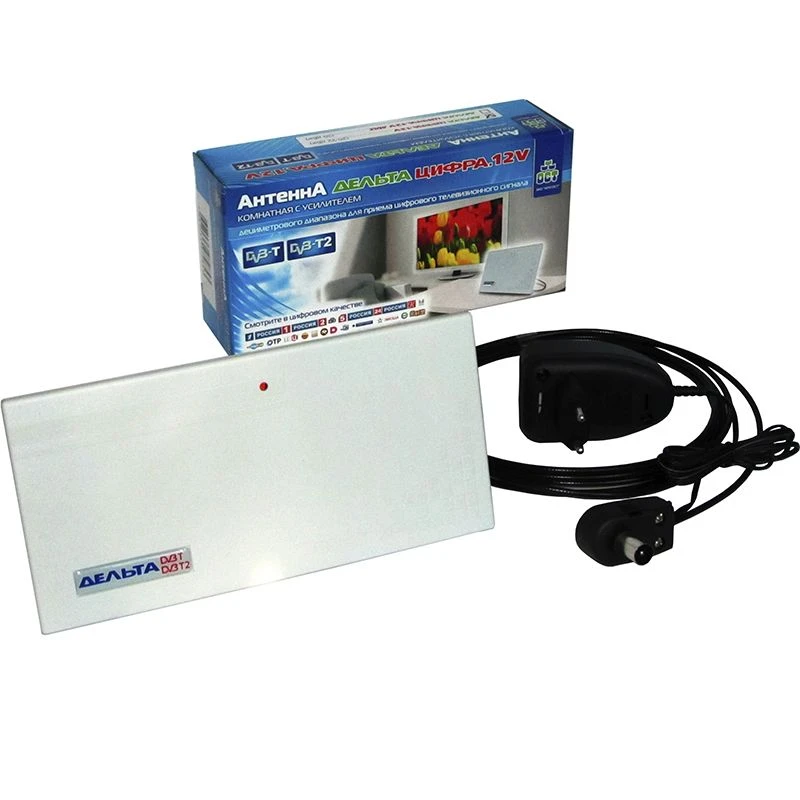

UHF Digital Range Antenna DELTA CIFRA 12V Available for Import

UHF Digital Range Antenna DELTA CIFRA 12V for Optimal TV Reception

Antenna Equipment & Parts
Manufacturer: CJSC NPP OST
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Designed for reception of digital and analogue television broadcasting in the range of DMV.

It is designed for operation in the temperature range from 5 to 35?? and the limit value of relative humidity of 80% at 25??.

The antenna is equipped with an amplifier to increase the signal level and compensate its attenuation in the antenna cable. Antenna amplifier does not have its own source and is designed for 12 V power supply, fed through the antenna cable from an external source of constant voltage 12 V (power supply unit with separator). The current consumption does not exceed 35 mA.

Specifications

Type by orientation
Directed
View
television
Type
decimeter range
Internal antenna type
room
Reinforcement type
Active
Type by received frequency range
decimeter
Maximum value of the operating radio frequency range
790
Input impedance
75 ohm
Received signals
470-790
Gain factor
22
Maximum operating temperature
30 °C
Minimum operating temperature
5 °C
Standing wave coefficient (VSWR)
75
Connector
F
Equipment
Antenna with 3 m cable, power supply unit
Weight
0.35 kg
Polarization
Horizontal
Power supply voltage
B1/B8 2100/900 MHz V
Mark
Delta

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
