Turnstile Controller for Access Control - PRTЕ.468382.001 Available for Import

Turnstile Controller for Access Control – PRTЕ.468382.001 for Effective Security Management

Mounted Circuit Boards
Manufacturer: PROSOFT LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

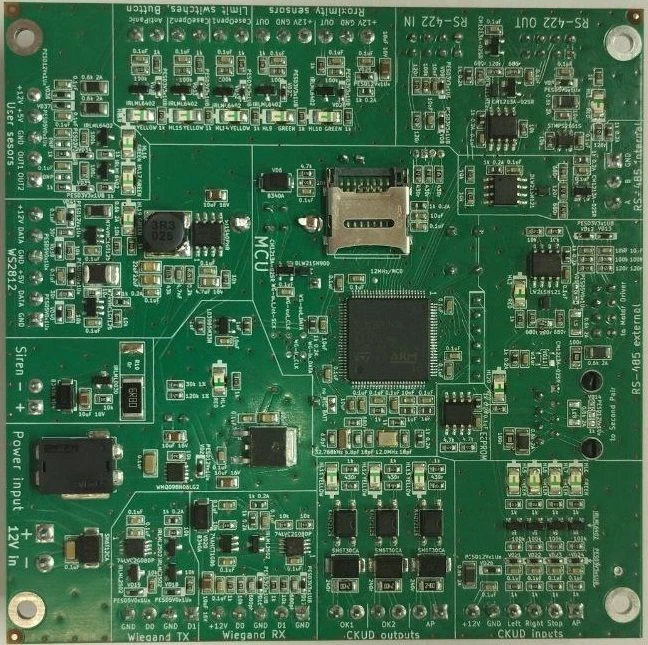

The turnstile controller (hereinafter referred to as the product) is designed for installation in a turnstile. The basis of the product is STM32 microcontroller. The product performs the main functions of primary processing of sensor signals, generates control commands for executive devices, provides exchange with the turnstile control system. The product uses RS-485 interface for exchange with the turnstile control system and RS-485 for exchange with executive devices, RS-422 for exchange with passage sensors, Wiegand interface and a number of discrete inputs and outputs. The software allows flexible customisation of the product for specific application.

Specifications

Microcontroller
STM32 series L476
RS-485 interface
2
Power supply voltage
12?
Audio playback
Got it
Support RGB tape (addressable)
Check, 12V
End inputs (dry contact)
2
Emergency switch input
1
Discrete input (open collector)
2
Дискретный вход от СКУД
4
Дискретный выход на СКУД
3
Wiegand
1
RS-422 interface
1
USB interface
1
MicroSD
1
Operating temperature range
10C to 35C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
