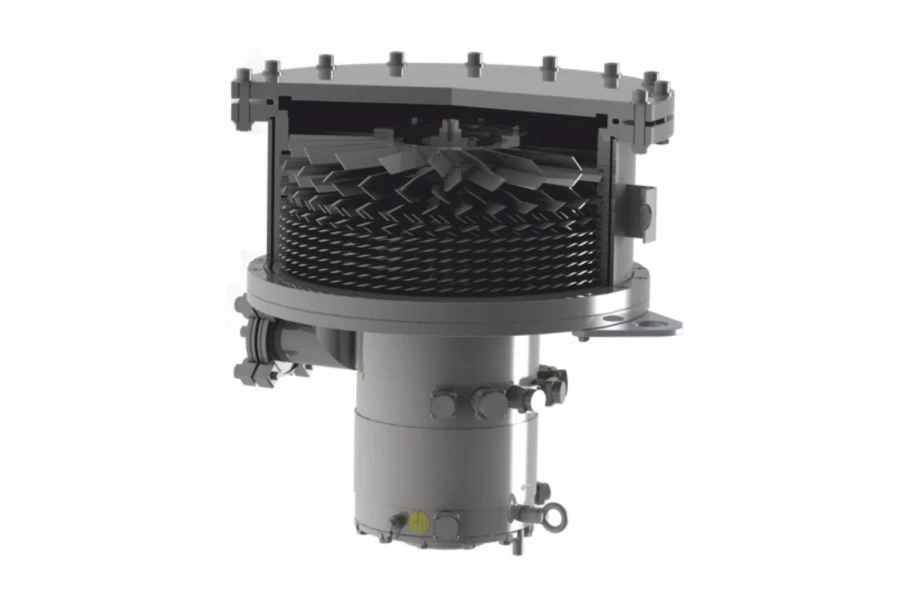

Turbomolecular Vacuum Pump NVT-400 for High Precision Vacuum Applications

Specialised Vacuum Pumps

Manufacturer:VACUUMASH OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Turbomolecular vacuum pump NVT-400 with active magnetic suspension of the rotor operates in the range of 50 Pa (3,8 x 10 -1 mm. Hg) to 6 x10 -6 Pa (4,8 x 10 -8 mm. Hg). Air velocity: 3200 l/s. Thanks to the electric drive with active magnetic suspension of the rotor, the pump is completely oil-free and easy to operate. Turbomolecular vacuum pumps are widely used in all high and ultra-high vacuum applications.

Specifications

Quickness of action on air at working pressure 1x10 -2 Pa, l/sec

3200 l/s

Compression ratio

10 6

Ultimate residual pressure, Pa, not more than

6,0?10 -6

Highest starting pressure at the pump outlet, Pa, max.

5,0?10 1

Rated speed, rpm

16000 ± 160

Orientation in space

any

Input flange

ISO-F 400

Output flange

ISO-K 63

Rotor acceleration time, min, not more

Rotor run-out time, min, not more

Cooling type

water

Cooling input and output port

G 1/8”

Cooling water temperature, °?

+5...+25 °C

Cooling water flow rate at a cooling inlet port pressure of 0.05 to 0.40 MPa (0.5 to 4.0 bar) and a temperature of max.

0.06

Pump dimensions, mm, max.

610 x 530 x 560 mm

Dimensions of the control unit, mm, not more

560 x 465 x 415 mm

Weight, kg, not more

210 kg

Weight of control unit, kg, not more

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording kg

Power supply

220 ± 22V, 50 ± 1G

Power consumption, kW, not more

1.9 kW

Sealing rate, m3?Pa/s, not more

5,0?10 -7

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
