Tinned Copper Cable Terminal TML 25-10-8 ZETARUS Available for Import

Tinned Copper Cable Terminal TML 25-10-8 ZETARUS for Secure Wire End Termination

Cable Accessories
Manufacturer: ZETA OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Tinned copper tip TML 185-11-21 ZETARUS Tinned copper tip TML 10-5-5 ZETARUS Tin-plated copper tip TML 185-20-24 ZETARUS Tin-plated copper tip TML 120-16-17 ZETARUS Tin-plated copper tip TML 25-6-7 ZETARUS
Tin-plated copper tip TML 10-8-5 ZETARUS Tin-plated copper tip TML 25 -6-8 ZETARUS Tin-plated copper tip TML 120-12-17 ZETARUS Tin-plated copper tip TML 6-6-4 ZETARUS Tinned copper tip TML 16-6-6 ZETARUS Tinned copper tip TML 35 -8 -9 ZETARUS Tin-plated copper tip TML 150-16-19 ZETARUS Tin-plated copper tip TML 25 -8-7 ZETARUS Tinned copper tip TML 240-16-24 ZETARUS Tin-plated copper tip TML 35 -12 -9 ZETARUS Tin-plated copper tip TML 50-8-11 ZETARUS Tin-plated copper tip TML 95-12-15 ZETARUS Tinned copper tip TML 35-10-9 ZETARUS Tin-plated copper tip TML 120-16-18 ZETARUS Tin-plated copper tip TML 4-5-3 ZETARUS Copper tinned pin tip NSHP 70-25 ZETARUS Tin-plated copper tip TML 2,5-4-2,6 ZETARUS Tin-plated copper tip TML 150-12-19 ZETARUS Tin-plated copper tip TML 95-12-16 ZETARUS Tinned copper tip TML 10-6-5 ZETARUS Tin-plated copper tip TML 50-12-11 ZETARUS Tin-plated copper tip TML 185-16-23 ZETARUS Tin-plated copper tip TML 6-5-4 ZETARUS Tinned copper tip TML 35 -8 -10 ZETARUS Tin-plated copper tip TML 70-10-13 ZETARUS Tin-plated copper tip TML 25-8 ZETARUS Tin-plated copper tip TML 4-4-3 ZETARUS Tinned copper tip TML 35 -12 -10 ZETARUS Tin-plated copper tip TML 70-12-13 ZETARUS Tin-plated copper tip TML 16-10-6 ZETARUS Tinned copper tip TML 2,5-5-2,6 ZETARUS Tinned copper tip TML 25-10-7 ZETARUS Tin-plated copper tip TML 16-8-6 ZETARUS Tin-plated copper tip TML 185-16-21 ZETARUS Tin-plated copper tip TML 2,5-6-2,6-2,6 ZETARUS Tin-plated copper tip TML 35-10-10 ZETARUS Tin-plated copper tip TML 95-10-15 ZETARUS Tin-plated copper tip TML 150-16-20 ZETARUS Tin-plated copper tip TML 50-10-11 ZETARUS Tin-plated copper tip TML 4-6-3 ZETARUS Tin-plated copper tip TML 6-4-4 ZETARUS Tin-plated copper tip TML 6-8-4 ZETARUS Tin-plated copper tip TML 95-10-16 ZETARUS

Description

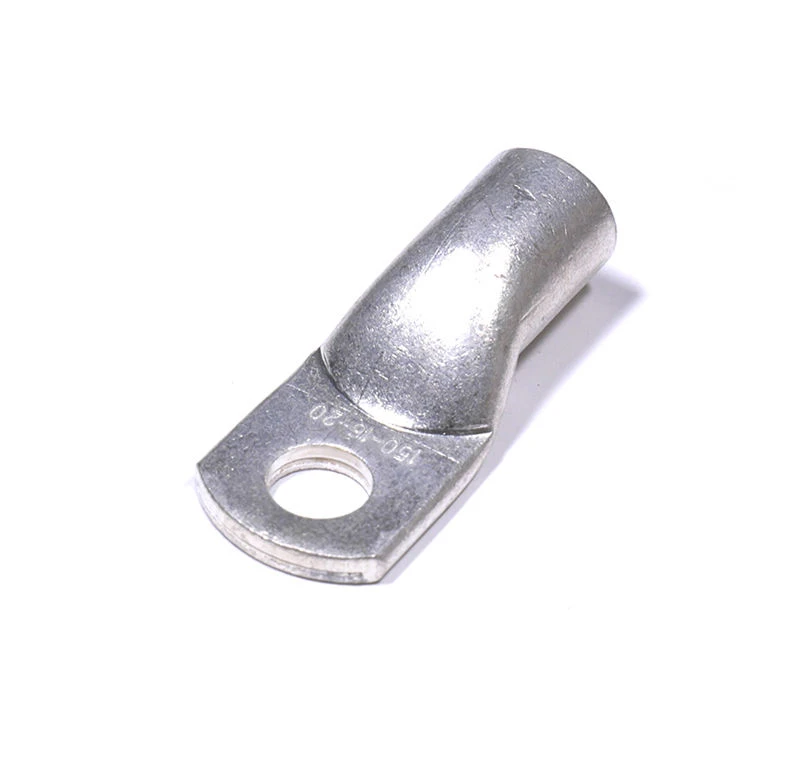

Cable copper tinned TML 25 -10-8 is used for termination of wires and cables with copper conductors with cross-section of 25 mm2 and is fixed on the conductors by crimping. It is made of M2 copper pipe with protective tin-bismuth coating (electrolytic tinning), which provides protection against destruction of the basic material in aggressive environment.Conforms to GOST 7386-80Terminals TML are made of M2 copper pipe with protective tin-bismuth coating (electrolytic tinning). The tip is put on the cable core and pressed with a hydraulic or manual press.

This method rigidly bonds the lug and the cable end, ensuring a secure connection. Tin-bismuth coating protects the products from corrosion in aggressive environment. The lugs are designed for 5-6 class of flexibility of cable cores.

Specifications

Material
Copper
Cable cross-section 5, 6 flexibility class
25 mm
Cable cross-section 2, 3 flexibility class
Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording mm
Climatic version
? 2
Inner shank diameter
8 mm
Contact rod diameter
10 mm
Inner diameter
8 mm
Nominal cross-section
25 mm²
Operating voltage
1...35 kV
Connector type
Tip
Availability of coverage
Tin-bismuth (Sn-Bi)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
