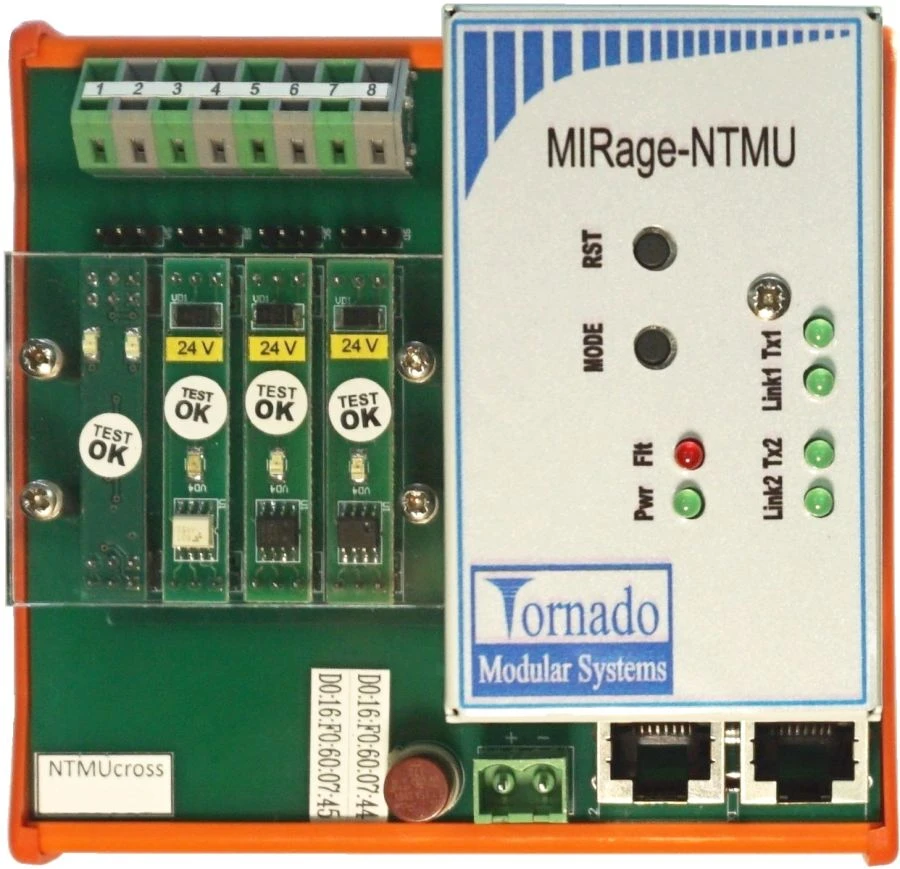

Timer Processing Device with Jaquet DSF Sensors for Signal Measurement

The MIRage-NTMU-J timer processing devices are designed to measure the time characteristics of periodic pulse signals and generate a pulse sequence with variable pulse repetition rate at a given rate of change of pulse repetition rate. The number of measuring channels (IC) of periods is 3, the number of IC of pulse generation is 1. Data exchange is carried out via redundant Ethernet interface via UDP protocol. When configuring and controlling the operating modes of the device, the ModBus protocol add-on is used, and the transmission of the flow of measured period values takes place in direct RAW mode without requests. MIRage-NTMU-J devices are designed for creation of automated process control systems (APCS) in various industries.
