TI11 Pulse Transformers for Gas Discharge Indicator Panels Available for Import

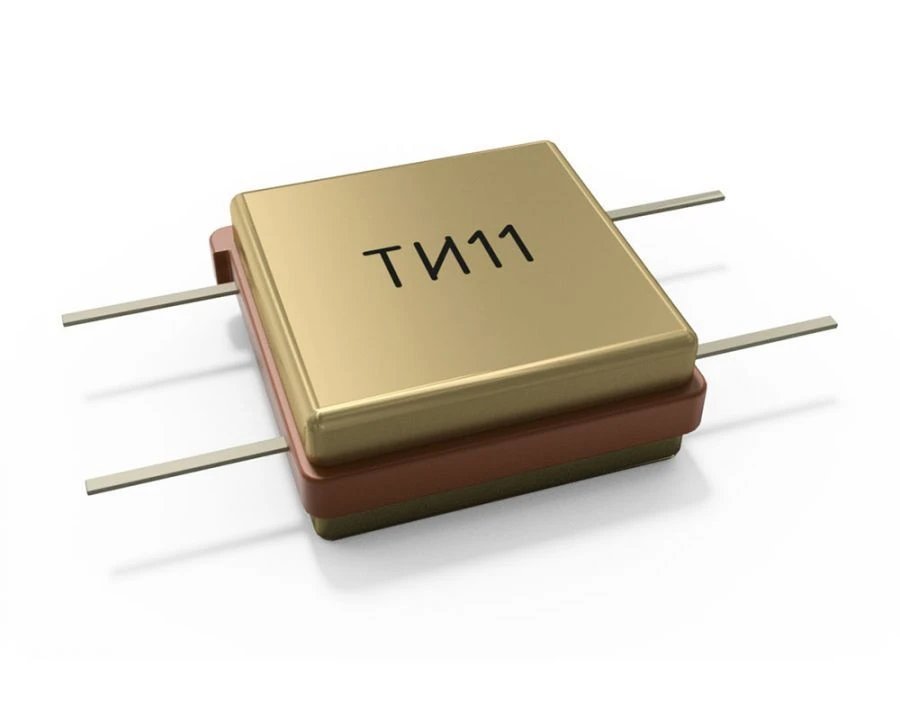

TI11 Pulse Transformers for Gas Discharge Indicator Panels and Control Applications

Electric Transformers
Manufacturer: PJSC "MSTATOR"
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Transformers pulse type TI11 are designed for operation in control circuits gas-discharge indicator panel (GIP) to display alphanumeric and graphic information and in other microelectronic equipment with operating voltage between windings up to 250 V, maximum input voltage up to 24 V and the product of pulse duration on the input pulse voltage of 12.5 and 50.0 ?s?V. Quality category "VP".

Specifications

Maximum product of pulse duration by input pulse voltage
12.5 ? 50.0(×10^-6)
Primary winding inductance, not less than
0.22 to 0.9(×10^-3)
Operating temperature range
-60...85 °C
Primary winding resistance to direct current, not more than
1.5 ohm
Insulation resistance, not less
1000 (×10^6) ohm
Primary winding inductance, not less than
0.22 ? 0.9(×10^-3)
Capacitance between primary and secondary windings, not more than
100(×10^-12)
Scattering inductance, not more
2.0 ? 3.0(×10^-6)
Electrical insulation strength: DC voltage
1000 V
Magnetizing current, not more
55 A
Transformation ratio, max.
1
Number of transformer windings
2 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
